Removing Rear Bumper

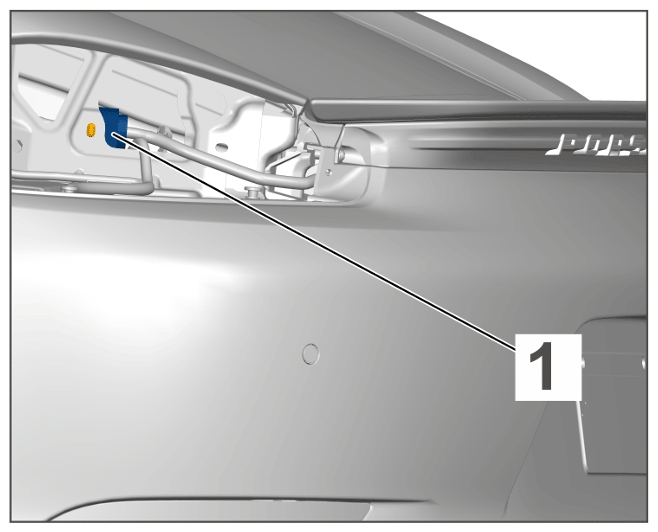

Release and disconnect electric plug connection for the ParkAssist sensors -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for Park Assist sensor

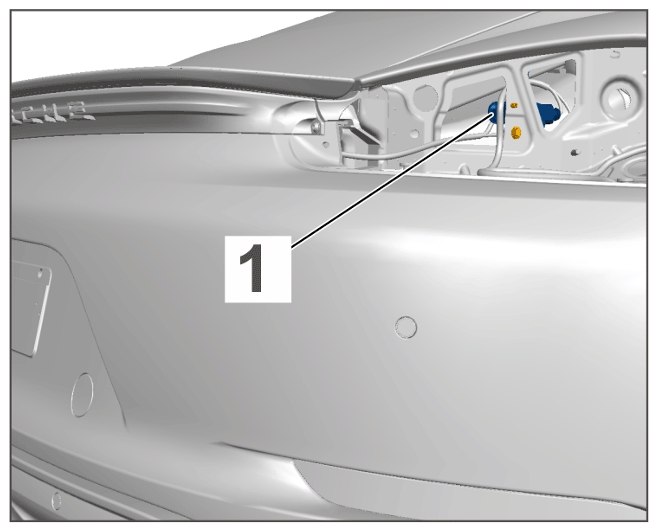

Release and disconnect electric plug connection on reversing camera control unit -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for reversing camera control unit

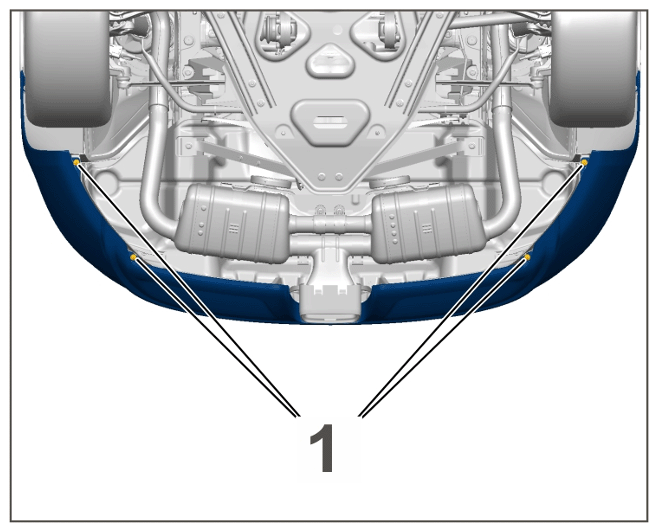

Unscrew screws at the bottom -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws at the bottom

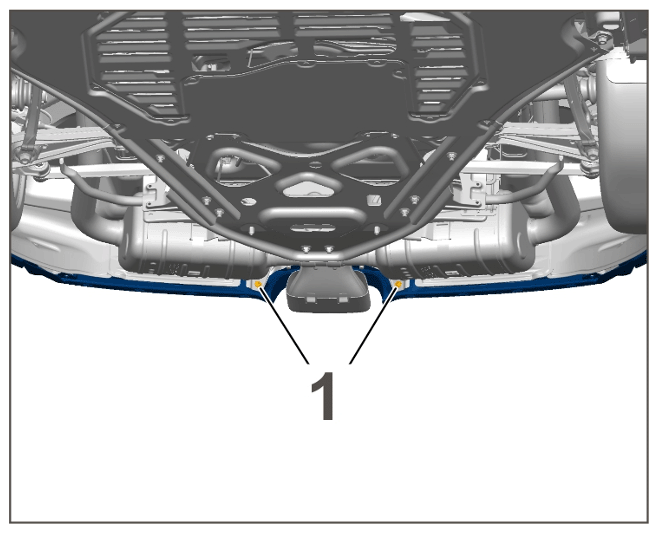

Unscrew screws in the centre at the bottom -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom centre screws

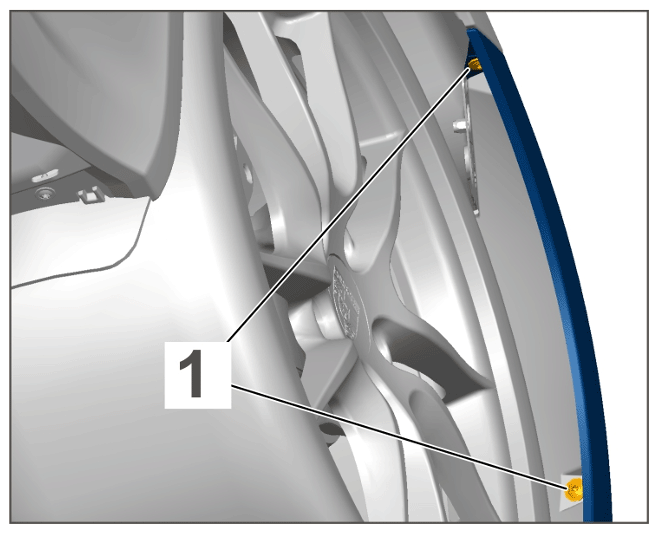

Unscrew screws -1- in the wheel housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws in wheel housing

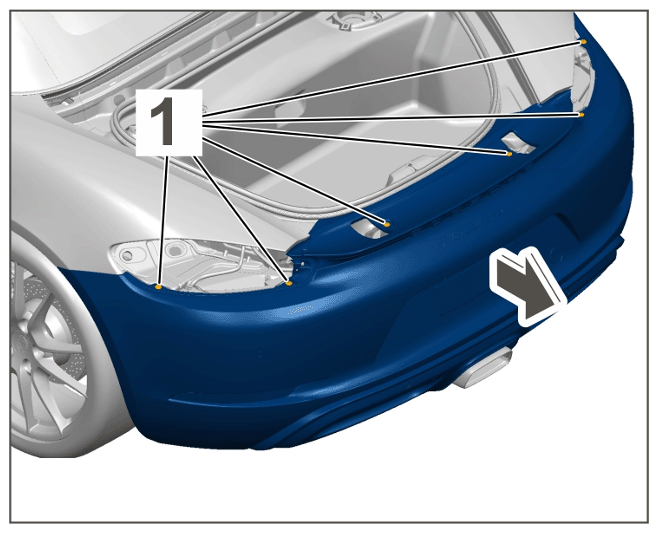

Unscrew fastening screws at the top -1- and remove rear bumper -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws at the top
