Technical Values

TIGHTENING TORQUE SPECIFICATION

Location Descri... Type Basic value Tolerance 1 Tolerance 2
Fastening screws on rear bumper Item 1 Tightening torque 23 N.m (17 ft lb.)

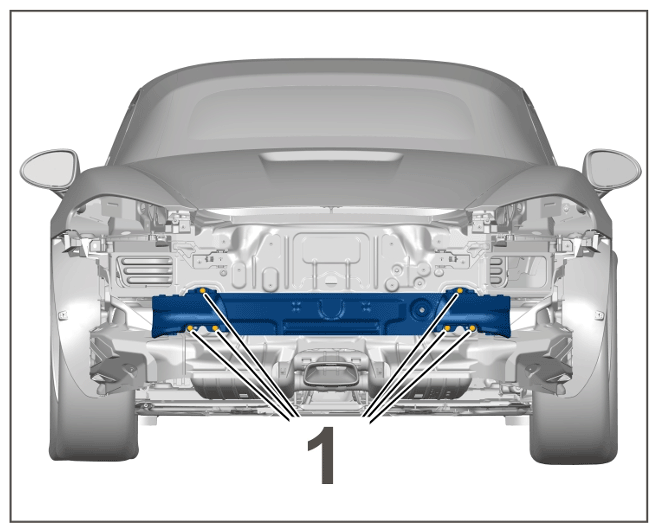

G16223715Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
