Disassembling Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

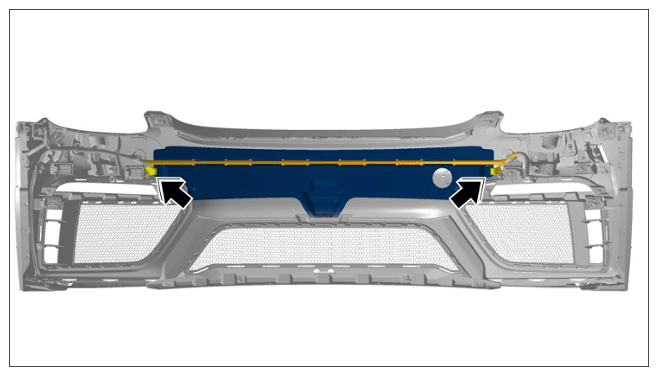

Foam part

1. 1.1 Unclip hose for headlight cleaning system -1-  .
2. 1.2 Unhook foam part at the locking lugs at the sides -Arrows-  .
3. 1.3 Remove foam part.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

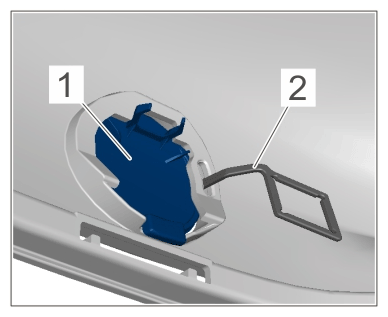

Cover for towing lug

1. 2.1 Press out the cover -1-  .
2. 2.2 Guide out safety strap -2-  .
