Assembly Instructions For Retainer Plate For Headlight-Washer Spray Nozzle

Information

Surface condition

• The bonding surfaces must be free from oil, dirt, moisture, and paint and oxide layers.
• Clean bonding surfaces with isopropyl and using clean, lint-free disposable cloths.
• Do not leave bonding surfaces exposed for more than 2 hours, otherwise bonding surfaces will have to be cleaned again.

Information

Temperature

• A processing temperature of between 20°C and 25°C applies to the surrounding area and materials.

Information

Applying adhesive

• Apply adhesive using the EPX application system (from 3M).
• Only use original mixing nozzles.
• Processing time: 2-3 minutes. If this is exceeded, use a new mixing nozzle.
• Apply adhesive in such a way that the bead of adhesive is pressed in by approx. 50% when joining components.
• Affix the retainer plate within a processing time of 2-3 minutes.

Information

Final bonding strength

• The required handling strength is achieved after approx. 3 hours. Do not move affixed retainer plates before then.
• The final bonding strength is achieved after approx. 24 hours. Do not apply pressure on the bonded joint during this time.
• At 70°C, the final bonding strength is achieved after approx. 30 minutes. Do not apply pressure on the bonded joint during this time.

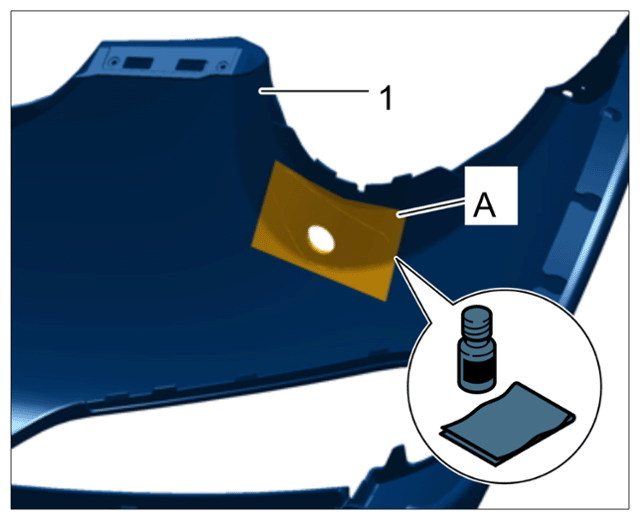

1. Clean the front apron -1-  at the left and right in the marked area -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cleaning front apron

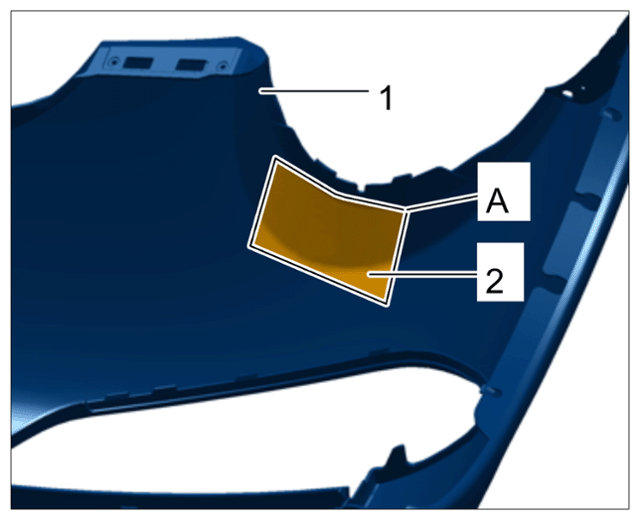

2. Mask the front apron -1-  at the left and right in the marked area -A-  with adhesive tape -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Masking front apron

3. Paint the front apron -1-  .
4. Remove adhesive tape -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing adhesive tape

5. Clean the front apron -1-  at the left and right in the marked area -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cleaning front apron

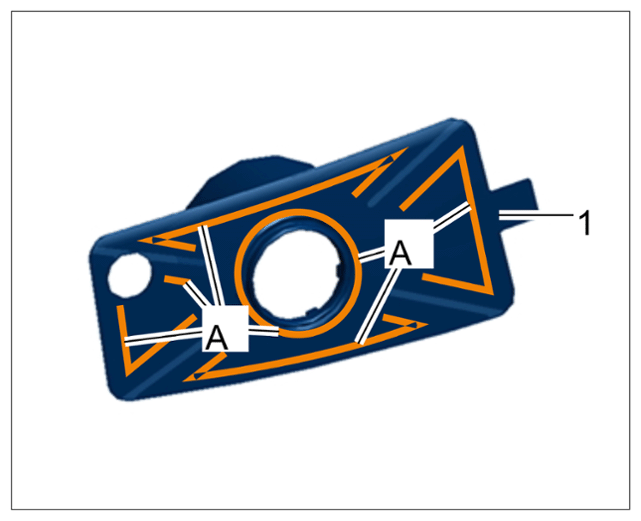

6. Apply adhesive to area -A-  on the retainer plate -1-  .

   > Application depth 3 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Applying adhesive

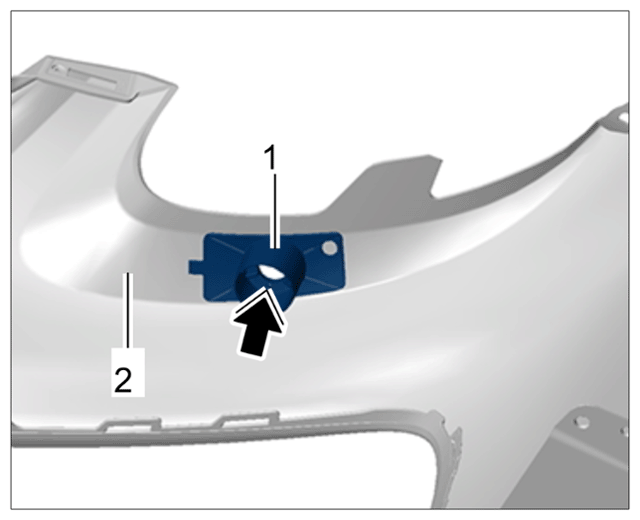

7. Affix retainer plate -1-  in the front apron -2-  (-arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Affixing retainer plate

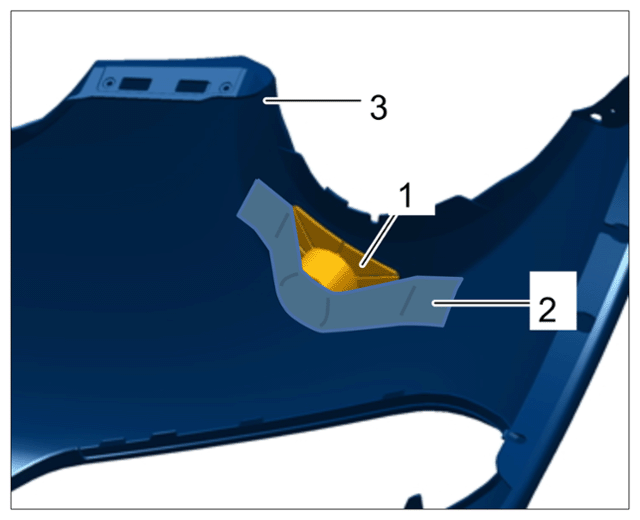

8. Secure the retainer plate -1-  with adhesive tape -2-  on the front apron -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Securing retainer plate

9. Remove securing tape after 3 hours at the earliest.
