Technical Values

TIGHTENING TORQUE SPECIFICATION

Location	Des...	Type	Basic val...	Toleranc...
Fastening screw securing front apron to body	Item 2	Tightening torque	3.2 N.m (2.4 ft lb.)	+/- 0.6 N.m (0.4 ft lb.)

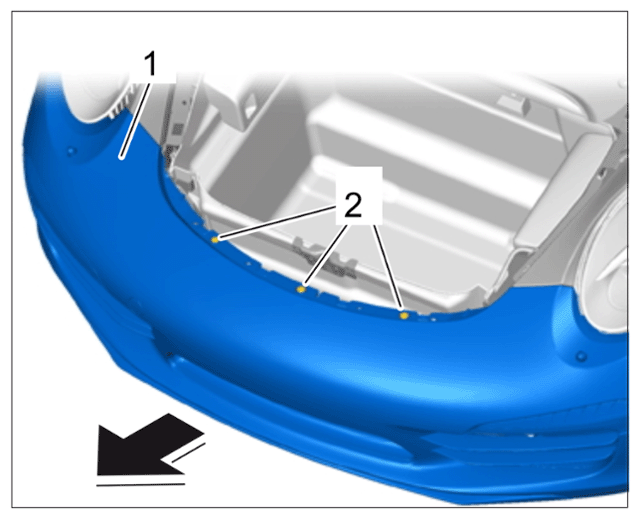

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening front bumper at the top
Fastening screw securing front bumper to body	Item 2	Tightening torque	3.2 N.m (2.4 ft lb.)	+/- 0.6 N.m (0.4 ft lb.)

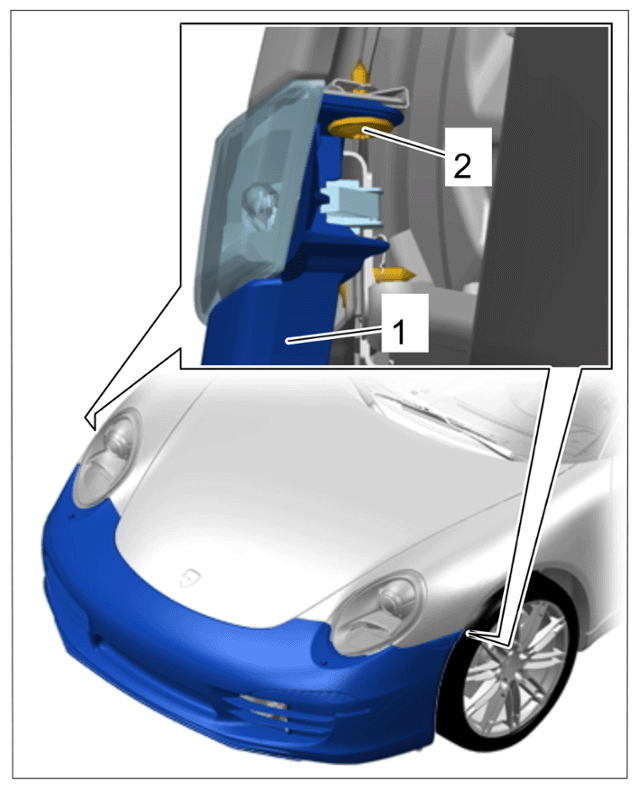

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening front bumper at the sides
Fastening screw bumper front apron to body	Item 2	Tightening torque	3.2 N.m (2.4 ft lb.)	+/- 0.6 N.m (0.4 ft lb.)

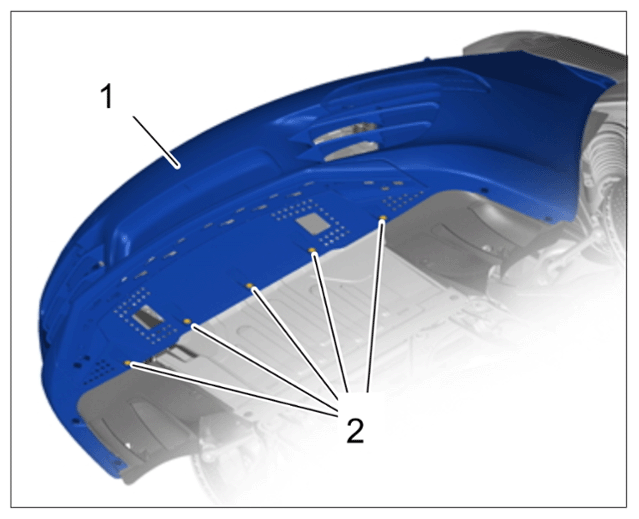

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening front bumper at the bottom
