Removing The Front Bumper

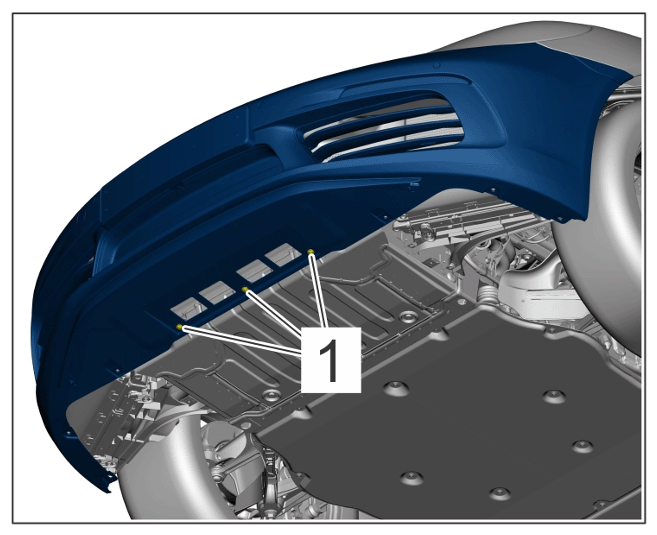

Unscrew bottom screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom screws

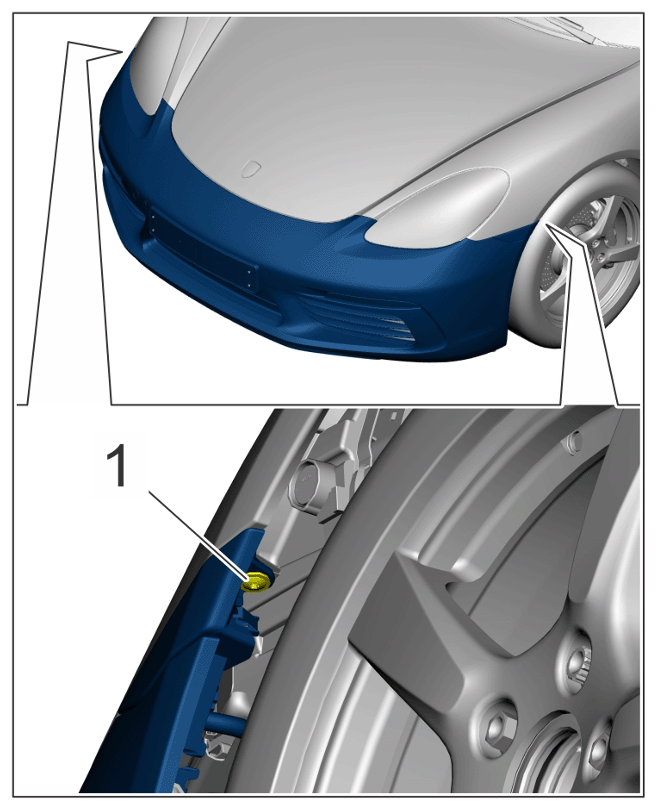

Unscrew screws -1- in the wheel housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wheel housing screws

Information
- Only for vehicles with headlight cleaning system.
Information
- A tight hose can be pulled off more easily after heating it with a hot-air gun.
- Collect washer fluid in a suitable container.

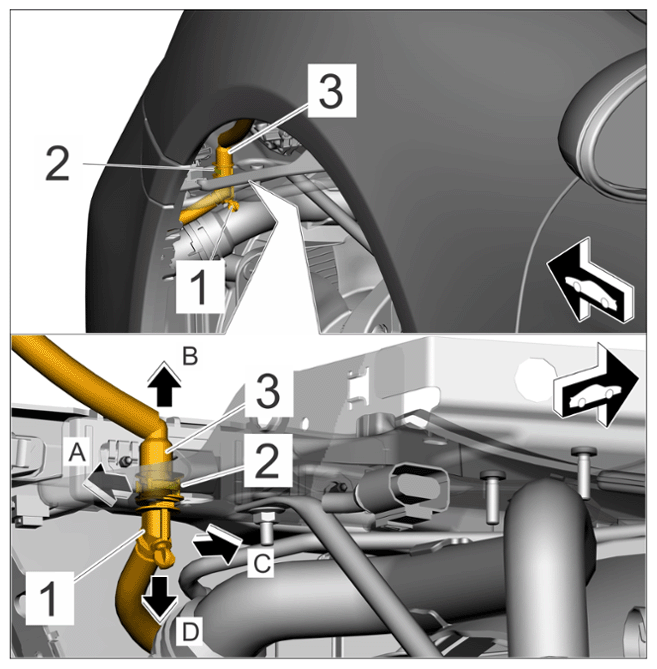

Remove washer fluid hose -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting washer fluid hose for headlight cleaning system
1. 3.1 Press clip -2-Arrow A- and pull off -3- water hose -Arrow B- .
2. 3.2 Disengage -1- and disconnect water hose -Arrow C- for headlight cleaning system -Arrow D- .

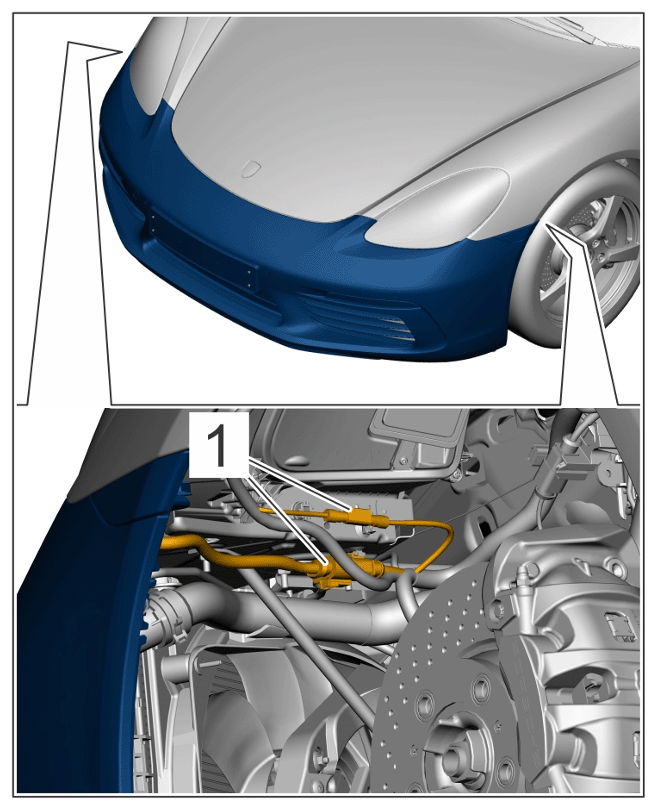

Unclip clips, then unlock and remove electric plug connection -1- in the wheel house.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection wheel house

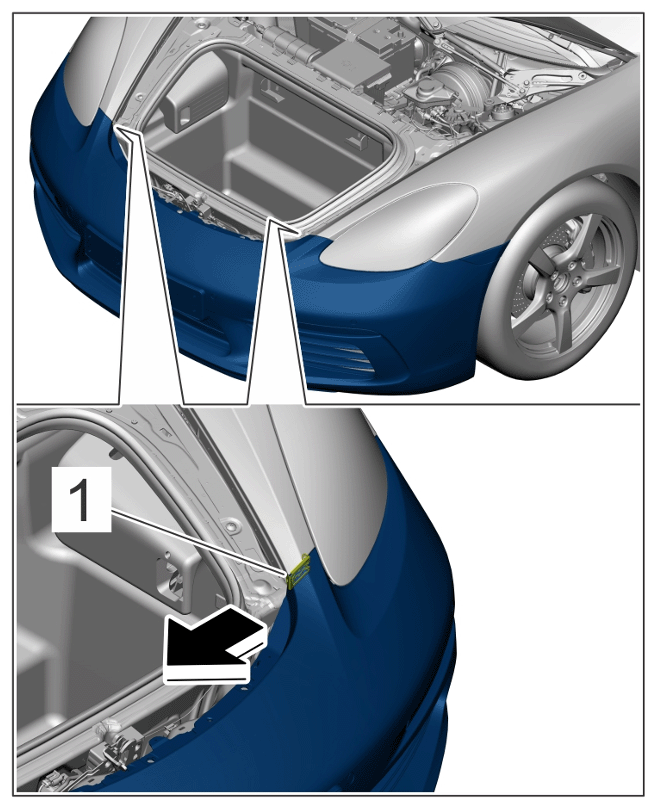

Pull off retaining clip -1- using > T10118 - assembly tool . -Arrow-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining clip

Information

The help of another person is required.

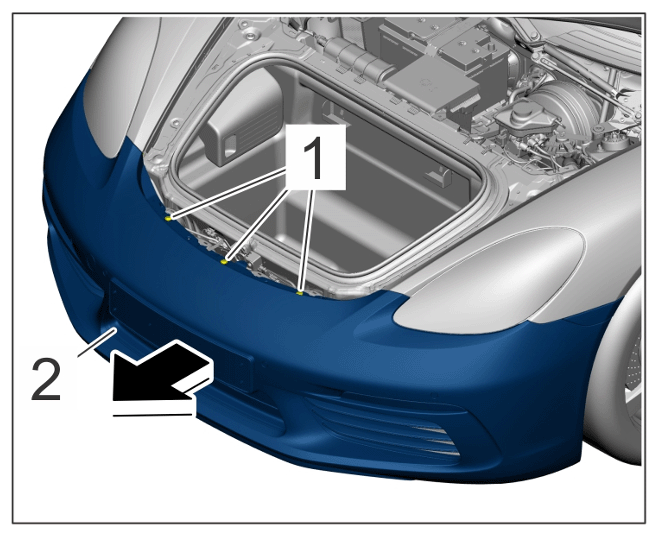

Unscrew screws -1- and remove front bumper -2- by pulling it forward. -Arrow-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Top screws
