Technical Values
TIGHTENING TORQUE SPECIFICATION
| Location |
Descri... |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

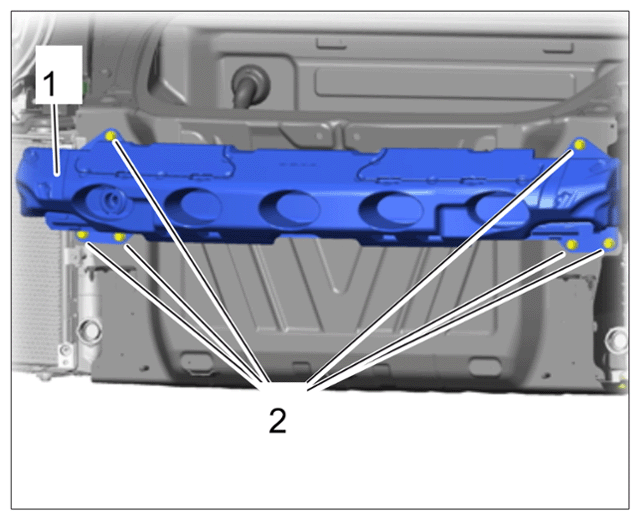

| Fastening screw securing bumper to bodyshell |
Item 2 |
Tightening torque |
23 N.m (17 ft lb.) |
+/- 2 N.m (1.5 ft lb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front bumper |
