Removing And Installing Front Bumper

  1. Unscrew screws -2-  and remove front bumper -1-  .

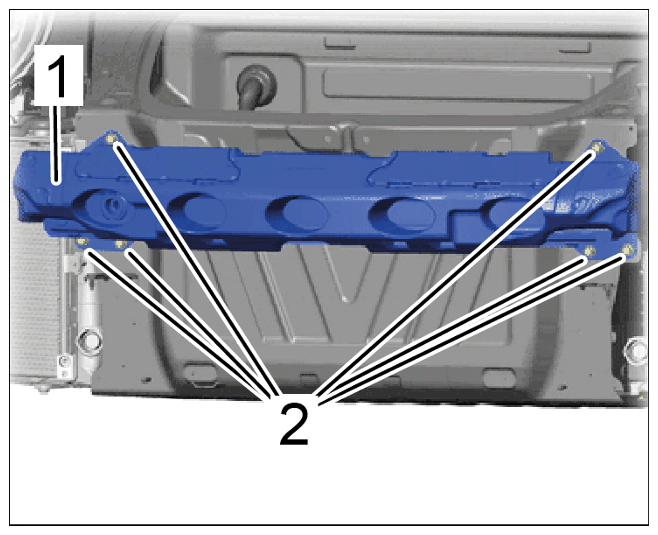

    G16223688Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front bumper

  2. Installation is performed in reverse order. Pay particular attention to the following:

    Tightening torque for screw on front bumper: > Tightening torque 23 N.m (17 ft lb.) +/- 2 N.m (1.5 ft lb.)
