WM, 635719 Removing And Installing Rear Retaining Strip: Notes
Technical values
TECHNICAL VALUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Fastening screws for retaining strip |
Item 1 |
Tightening torque |
7 (5 ftlb.) Nm |
+ 0.7 (0.4 ftlb.) Nm |
- 1 (0.5 ftlb.) Nm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

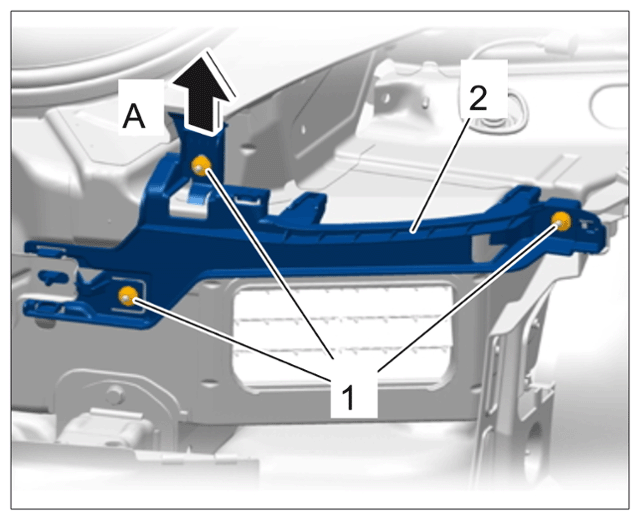

Installing rear retaining strip |
