WM, 635619 Removing And Installing Rear Panel (Logo): Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

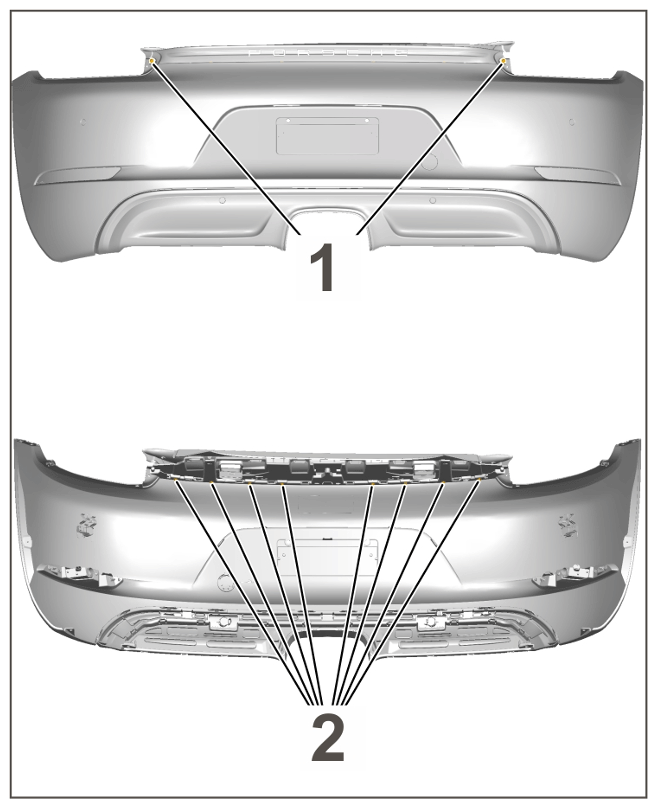

Fastening screws for rear panel (logo)	Item 1	Tightening torque	2.4 (2 ftlb.) Nm	+ 10 %	+/- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Fastening screws for cover	Item 2	Tightening torque	2.4 (2 ftlb.) Nm	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

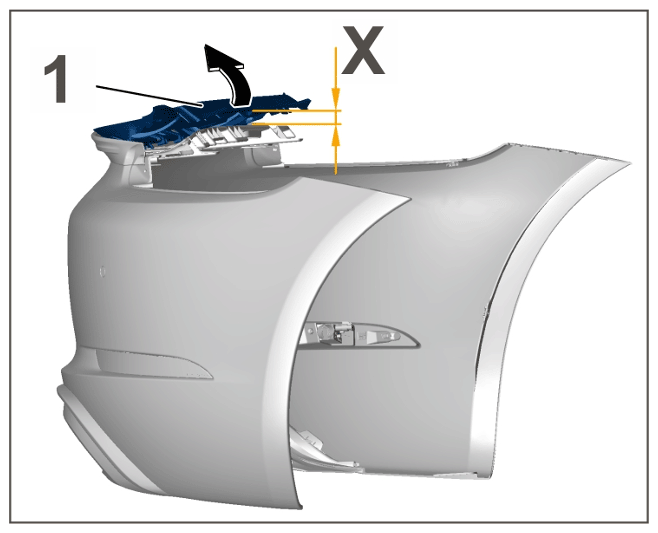

Distance from cover to rear apron	Item	X Length	5 cm	+/- 1 cm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover
