WM, 635519 Removing And Installing Rear Apron: Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Fastening screws for rear apron, bottom		Tightening torque	3.2 (2.2 ftlb.) Nm

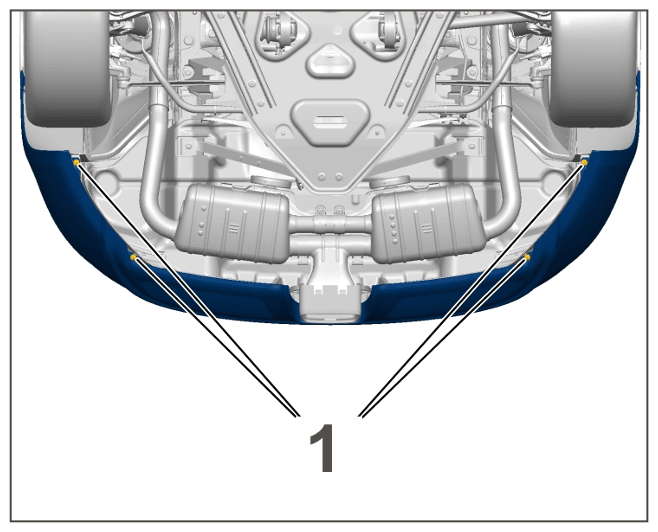

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bottom fastening screws
Fastening screws for rear apron, bottom centre		Tightening torque	4.5 (3.25 ftlb.) Nm

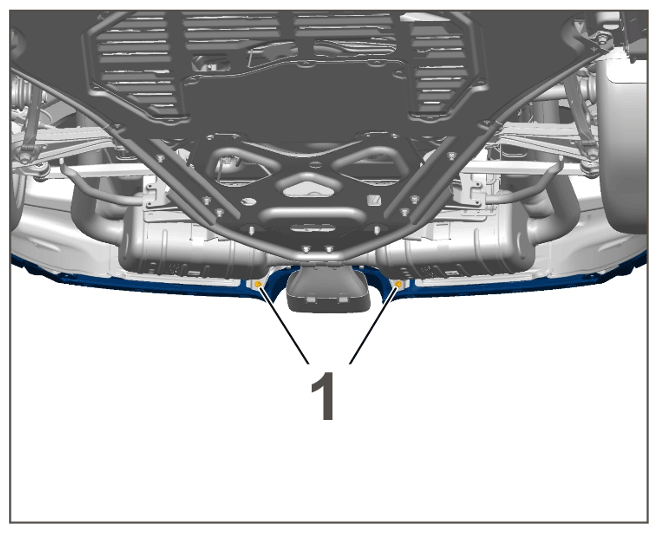

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bottom centre fastening screws
Fastening screws for rear apron in wheel housing		Tightening torque	3.2 (2.2 ftlb.) Nm

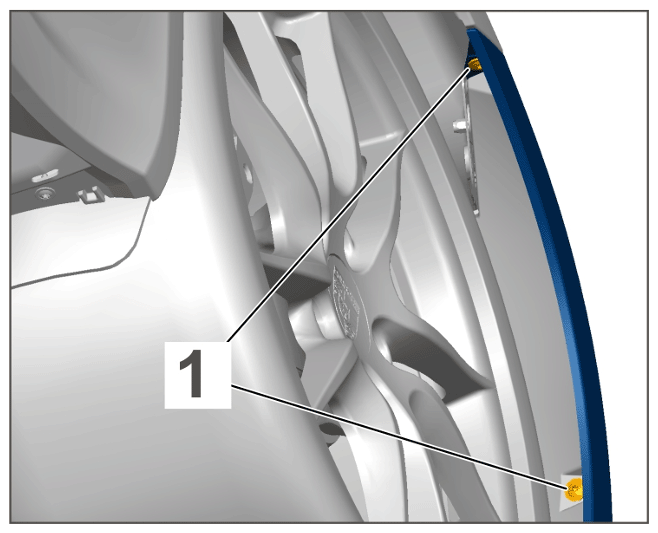

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws in wheel housing
Fastening screws for rear apron, top		Tightening torque	3.2 (2.2 ftlb.) Nm

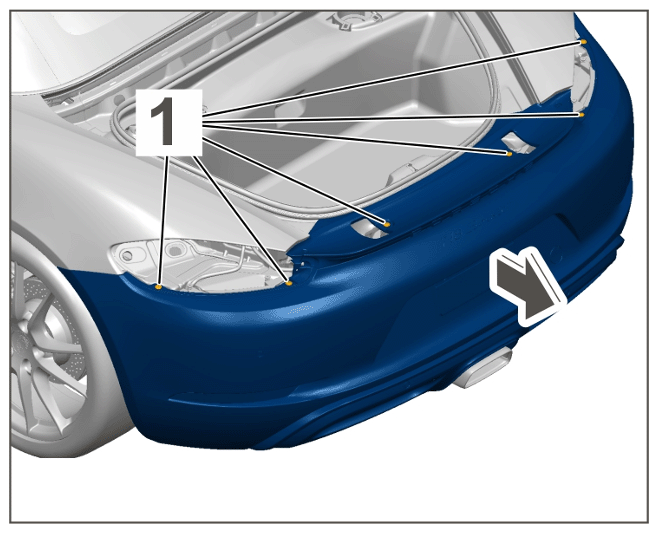

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Top fastening screws
