WM, 635019 Removing And Installing Rear Bumper: Notes
Technical values
TECHNICAL VALUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

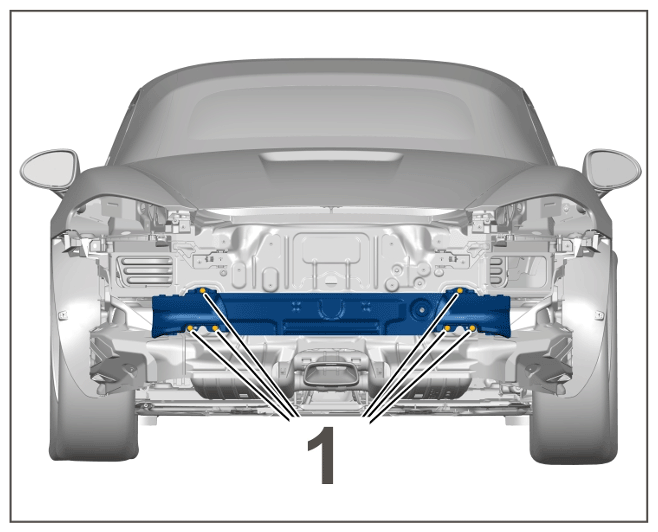

| Fastening screws for rear bumper |
Item 1 |
Tightening torque |
23 (17 ftlb.) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws |
