WM, 51941925 Removing And Installing Cover For Rear Underbody: Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Screws for rear underbody cover	Item 2	Tightening torque	9.7 (7.5 ftlb.) Nm

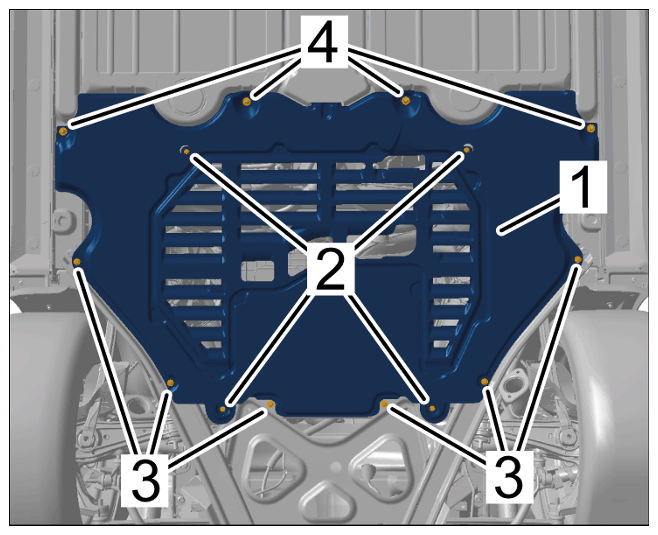

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover for rear underbody
Screws for rear underbody cover	Item 3	Tightening torque	3 (2 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover for rear underbody
Nuts for rear underbody cover	Item 4	Tightening torque	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover for rear underbody
