WM, 519319 Removing And Installing Cover For Centre Underbody: Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Fastening screws securing side underbody cover to body	Item 2	Tightening torque	2.7 (1.75 ftlb.) Nm	+/- 0.2 (0.1 ftlb.) Nm

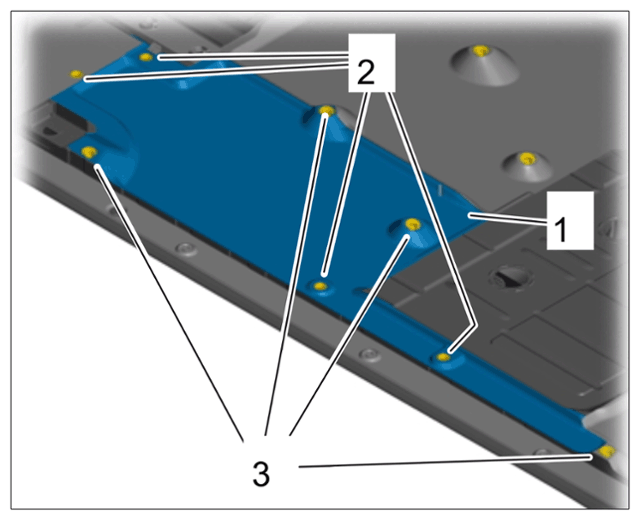

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing side cover
Fastening nuts securing side underbody cover to body	Item 3	Tightening torque	2.7 (1.75 ftlb.) Nm	+/- 0.2 (0.1 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing side cover
Fastening screws securing centre underbody cover to body	Item 2	Tightening torque	2.7 (1.75 ftlb.) Nm	+/- 0.2 (0.1 ftlb.) Nm

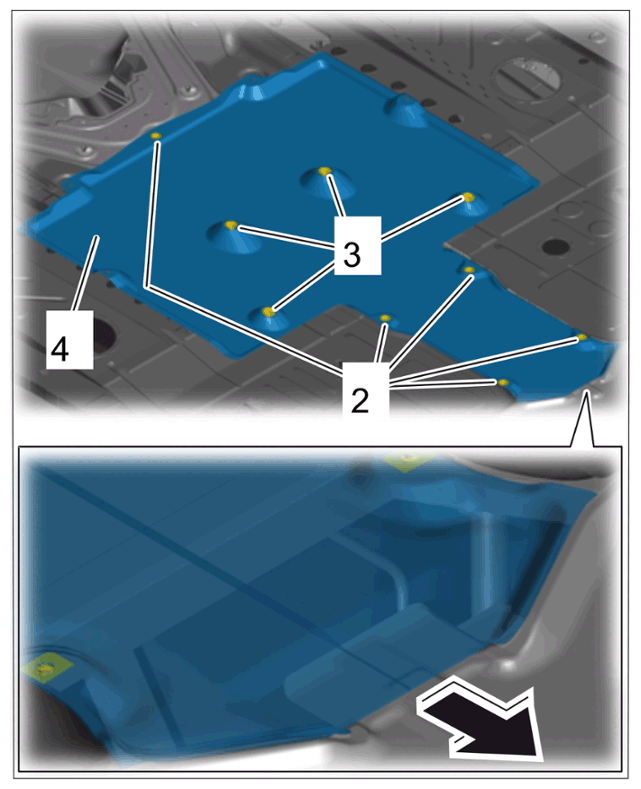

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing centre cover
Fastening nuts securing centre underbody cover to body	Item 3	Tightening torque	2.7 (1.75 ftlb.) Nm	+/- 0.2 (0.1 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing centre cover
