WM, 519219 Removing And Installing Cover For Front Underbody: Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Fastening screws securing front underbody cover to body	Item 2	Tightening torque	2.7 (1.75 ftlb.) Nm	+/- 0.2 (0.1 ftlb.) Nm

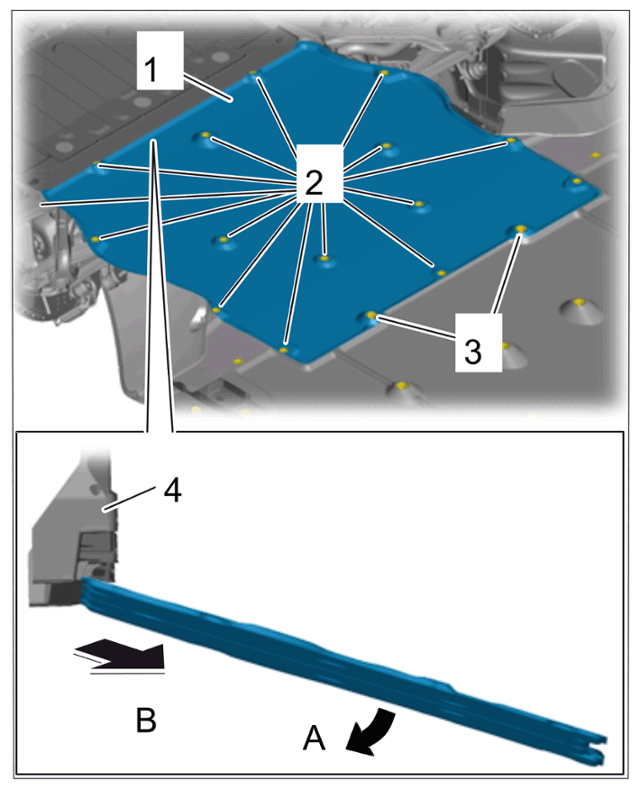

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing cover for front underbody
Fastening nuts securing front underbody cover to body	Item 3	Tightening torque	2.7 (1.75 ftlb.) Nm	+/- 0.2 (0.1 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing cover for front underbody
