WM, 518941 Threaded Bushes: Notes

Parts

PART NUMBER DESCRIPTION

Tools

TOOL DESCRIPTION

Tool denomination	Type	Tool number	Image

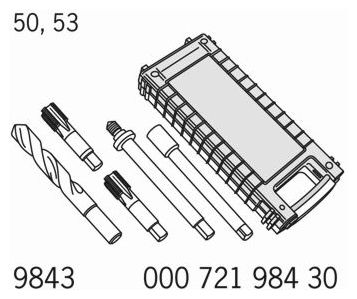

Thread repair kit	Special tool	> 9843	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

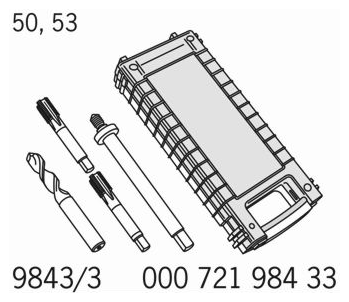

Thread repair kit	Special tool	> 9843/3	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Time-Sert thread repair kit	Commercially available tool	> Nr.122-1 Pos.1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Time-sert thread repair kit	Special tool	> 9394	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

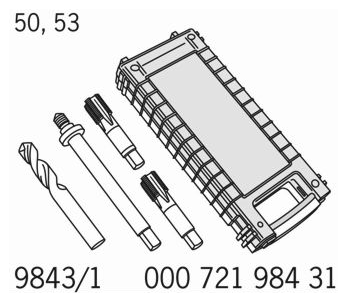

thread repair kit	Special tool	> 9843/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

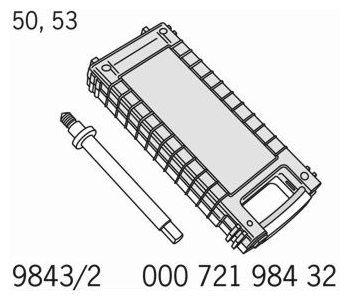

thread repair kit	Special tool	> 9843/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Time-Sert thread repair kit	Commercially available tool	> Nr.122-1 Pos.2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Thread 1 and 2	Dimension Y	Length	33 mm

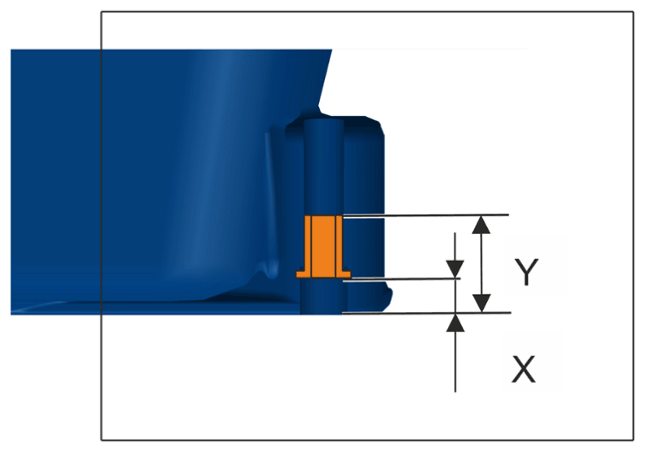

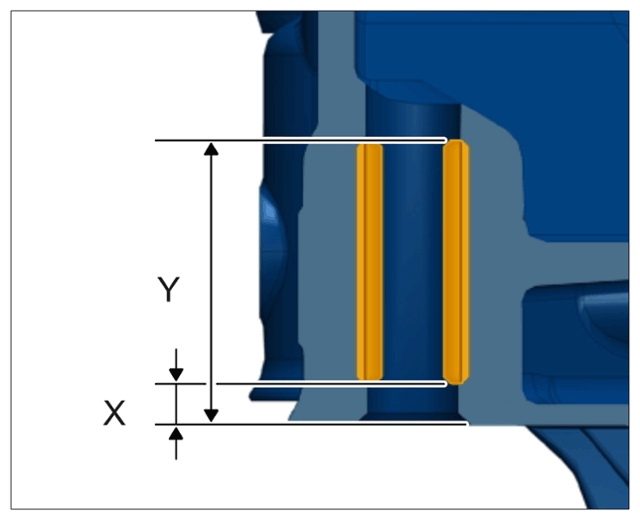

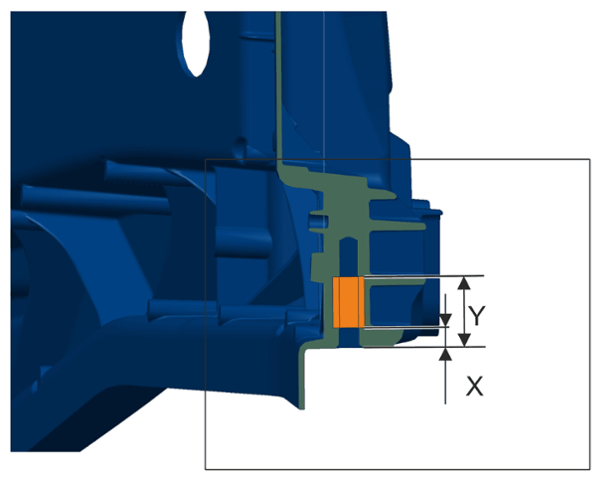

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cross member thread repair
Thread 1 and 2	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cross member thread repair
Thread 1	Dimension Y	Length	20 mm

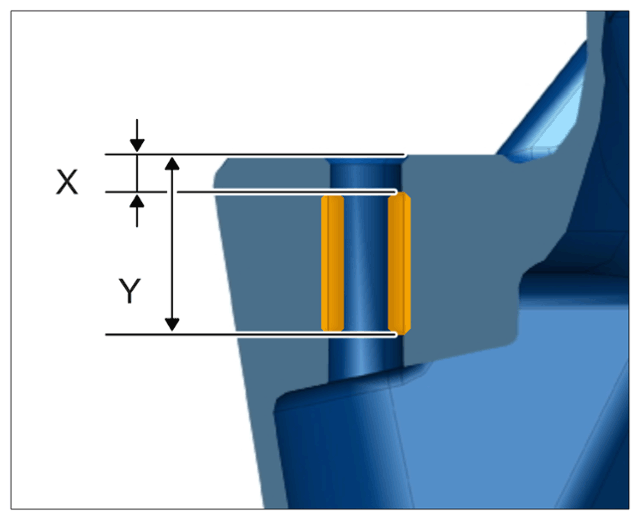

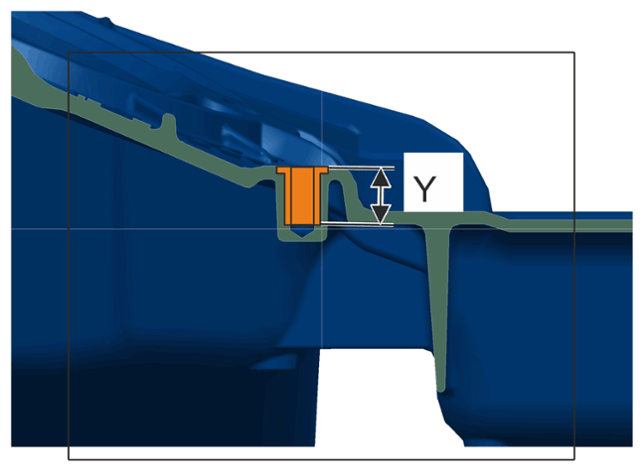

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
Thread 1	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
Thread 2	Dimension Y	Length	20 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
Thread 2	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
Thread 3	Dimension Y	Length	9.4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
Thread 1	Dimension Y	Length	25 mm

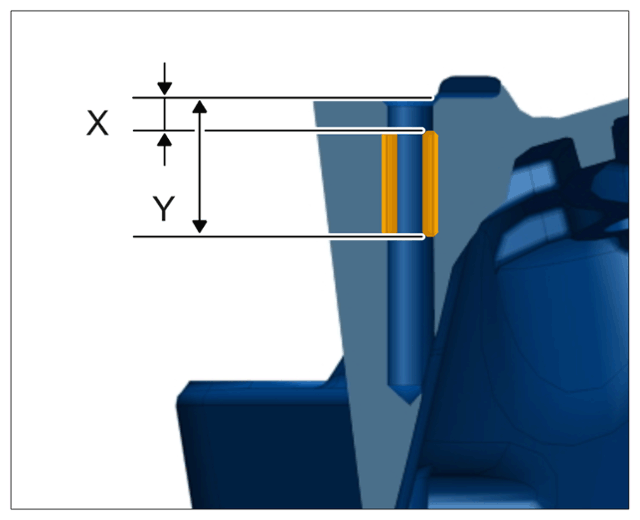

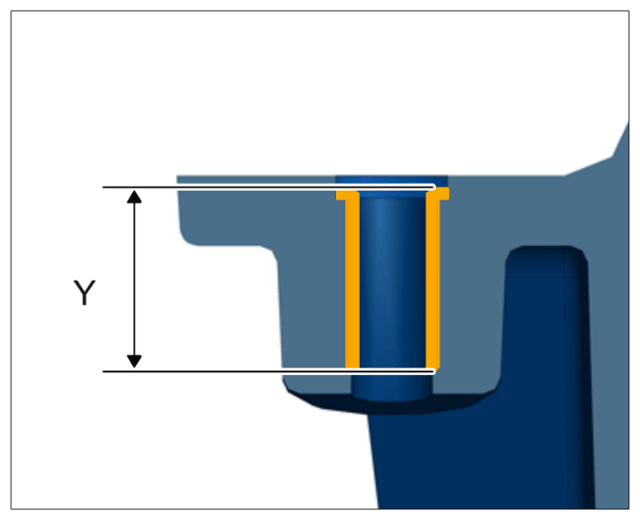

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs for engine mount mounting
Thread 1	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs for engine mount mounting
Thread 1 and 2	Dimension Y	Length	37 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on rear side member
Thread 1 and 2	Dimension X	Length	10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on rear side member
Thread 1	Dimension Y	Length	16.2 mm

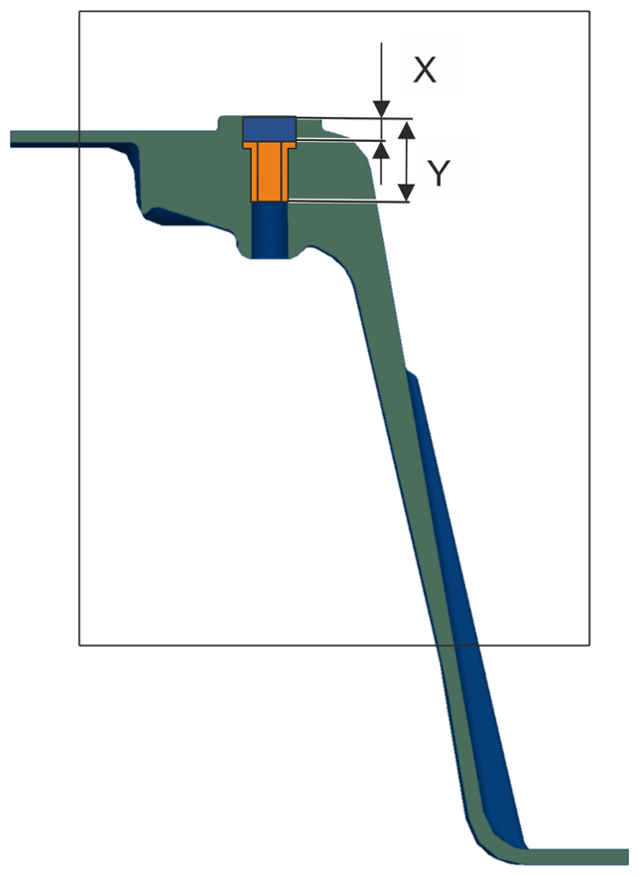

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on impact absorber mount
Thread 1 and 2	Dimension Y	Length	30 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on threaded joint for roll-over bar
Thread 1 and 2	Dimension X	Length	10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on threaded joint for roll-over bar
Thread 1	Dimension Y	Length	9.4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
