Thread On Rear Spring Strut Mount

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

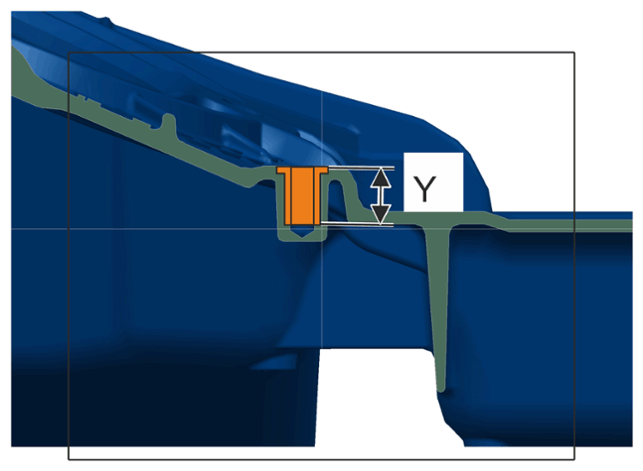

Overview of standard thread on rear spring strut mount

VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance
Thread 1	Dimension Y	Length	9.4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount

1. Repair thread

   > 5X00IN33 THREAD REPAIRS FOR THREADED BUSHES WITH COLLAR

   Use repair kit > Nr.122-1 Pos.1 - Time-Sert thread repair kit  with short threaded bush.
