Thread On Rear Side Member

Information

• Remove wire thread inserts (Helicoil) that are installed as standard before drilling out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

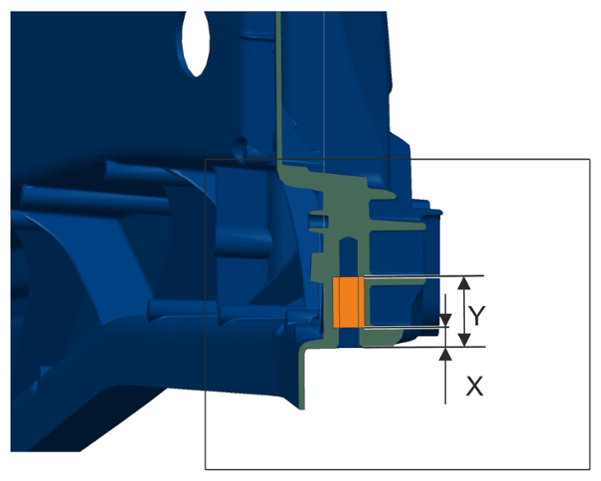

Overview of standard thread on rear side member

THREAD SPECIFICATION

VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance
Thread 1 and 2	Dimension Y	Length	37 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on rear side member
Thread 1 and 2	Dimension X	Length	10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on rear side member

1. Repair thread

   > 5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR

   Use repair kit > 9843/1 - thread repair kit with screw-in tool from repair kit  > 9843/2 - thread repair kit and threaded bush  > THREADED BUSH 999.504.267.01.
