Repairing Spring Strut Mount Thread

Information

Remove wire thread inserts (Helicoil) that are installed as standard before drilling out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of standard spring strut mount thread

SPRING STRUT MOUNT THREAD SPECIFICATION

Thread 1; for securing diagonal braces (Helicoil)	M8 x 16
Thread 2; for securing alarm horn (only on left spring strut mount) (Helicoil)	M8 x 16
Thread 3; for securing sensor	M6 thread

VALUE SPECIFICATION

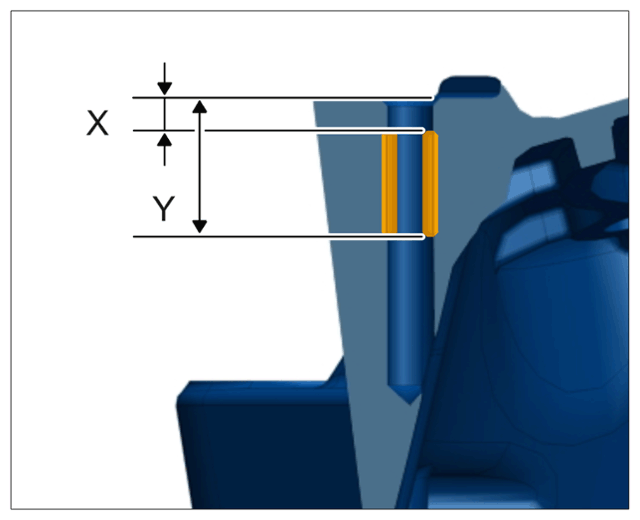

Location	Description	Type	Basic value
Thread 1	Dimension Y	Length	20 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
Thread 1	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount

Repair thread

Use repair kit > 9843/3 - Thread repair kit with threaded bush > THREADED BUSH 999.504.262.01.

VALUE SPECIFICATION

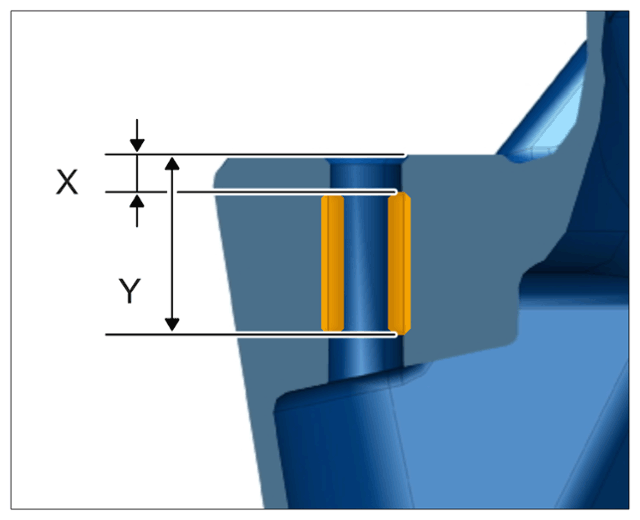

Location	Description	Type	Basic value
Thread 2	Dimension Y	Length	20 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
Thread 2	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount

Repair thread

Use repair kit > 9843/3 - Thread repair kit with threaded bush > THREADED BUSH 999.504.262.01.

VALUE SPECIFICATION

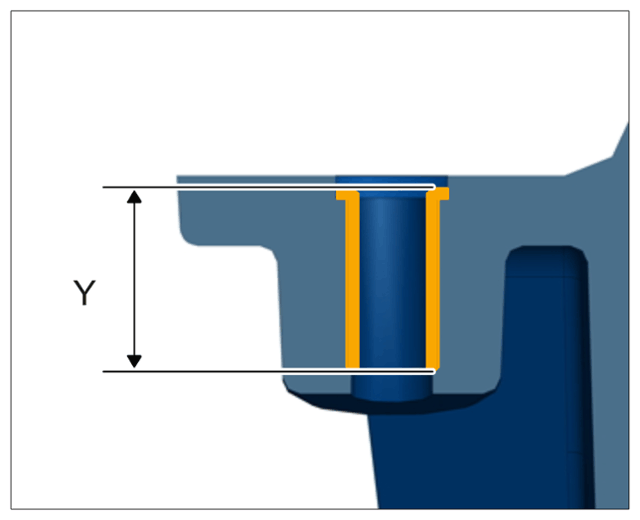

Location	Description	Type	Basic value	Tolerance
Thread 3	Dimension Y	Length	9.4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount

THREAD SPECIFICATION

Thread 1: Engine mount mounting

M10 x 20

VALUE SPECIFICATION

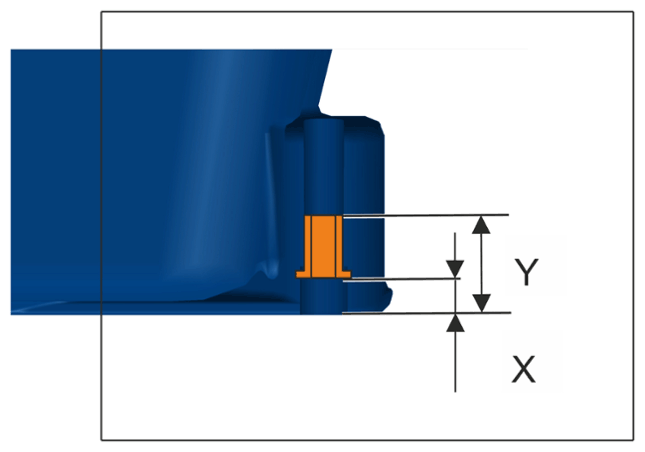

Location	Description	Type	Basic value
Thread 1	Dimension Y	Length	25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs for engine mount mounting
Thread 1	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs for engine mount mounting

Repair thread
> 5X00IN33 THREAD REPAIRS FOR THREADED BUSHES WITH COLLAR

Use repair kit > 9394 - Time-sert thread repair kit with threaded bush from repair kit.
