Repairing (Luggage Compartment) Cross Member Thread
Information
- Remove wire thread inserts (Helicoil) that are installed as standard before drilling out.
Overview of standard cross member thread
STANDARD CROSS MEMBER THREAD SPECIFICATION
| Thread 1; for securing front axle (Helicoil) | M12 x 1.5 x 30 |
| Thread 2; for securing axle mounting (Helicoil) | M12 x 1.5 x 30 |

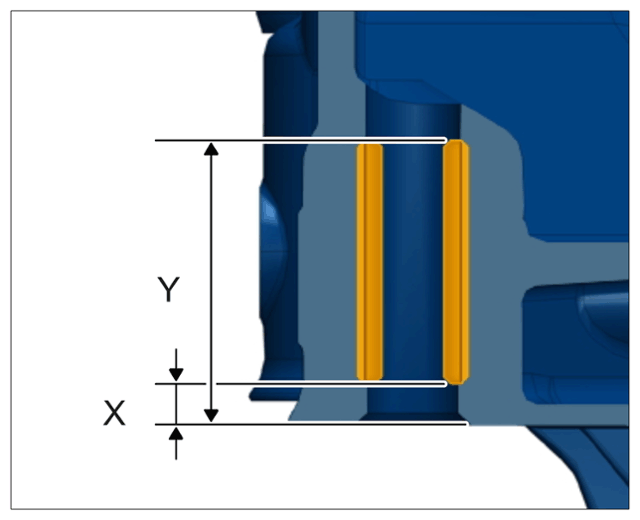

VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Thread 1 and 2 | Dimension Y | Length | 33 mm | |
|
Cross member thread repair |
||||
| Thread 1 and 2 | Dimension X | Length | 5 mm | |
|
Cross member thread repair |
||||
- Repair thread
> 5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR
Use repair kit > 9843 - Thread repair kit with threaded bush > THREADED BUSH 999.504.266.01.
