WM, 516819 Removing And Installing Dashboard Bracket: Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value
Heating/fresh-air unit to dashboard bracket		Tightening torque	8 (6 ftlb.) Nm

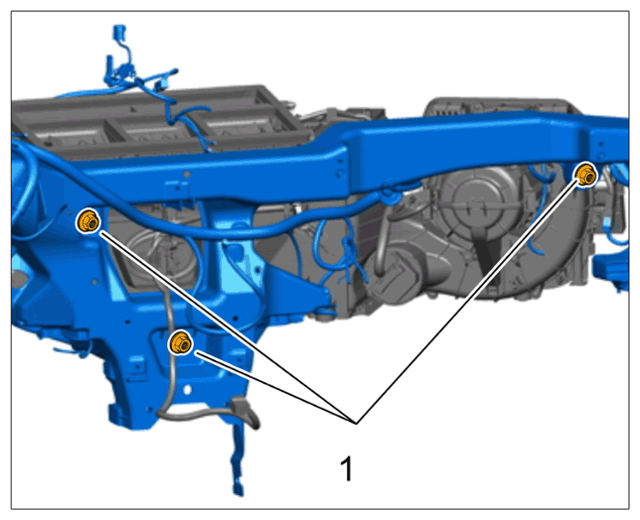

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts for heating/fresh-air unit
Fastening screw securing dashboard bracket to holder	Item 1	Tightening torque	23 (17 ftlb.) Nm

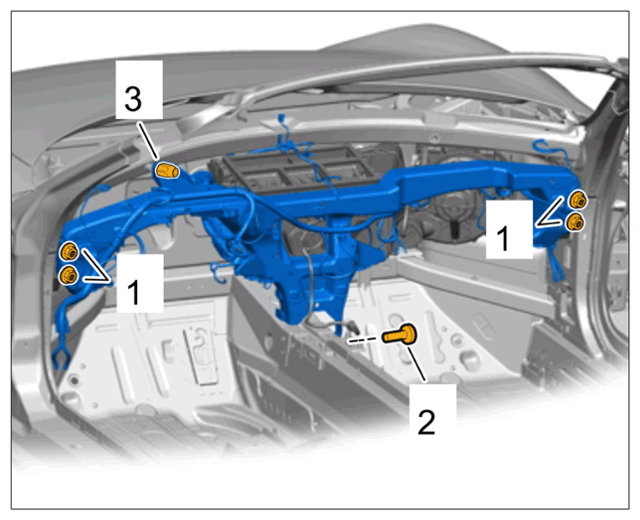

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for dashboard bracket
Fastening screw securing dashboard bracket to tunnel	Item 2	Tightening torque	23 (17 ftlb.) Nm
Fastening screw securing dashboard bracket to firewall	Item 3	Tightening torque	23 (17 ftlb.) Nm
Fastening screw securing holder for dashboard bracket to body		Tightening torque	23 (17 ftlb.) Nm

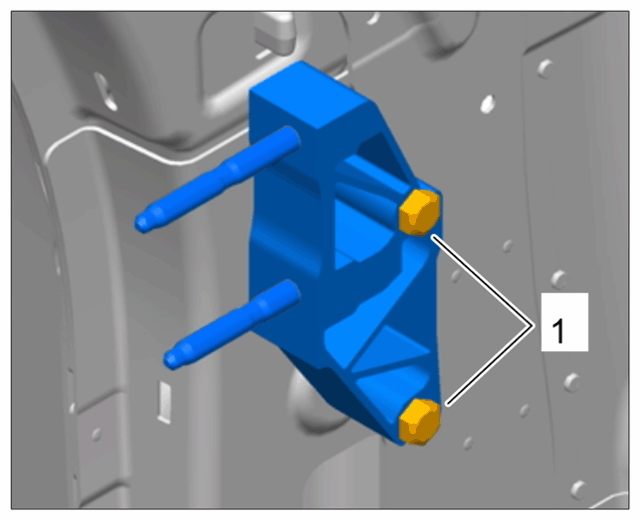

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for holder for dashboard bracket
