Six-Point Seat Belt

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value
Fastening screws for shoulder belt sleeve		Tightening torque	40 (30 ftlb.) Nm

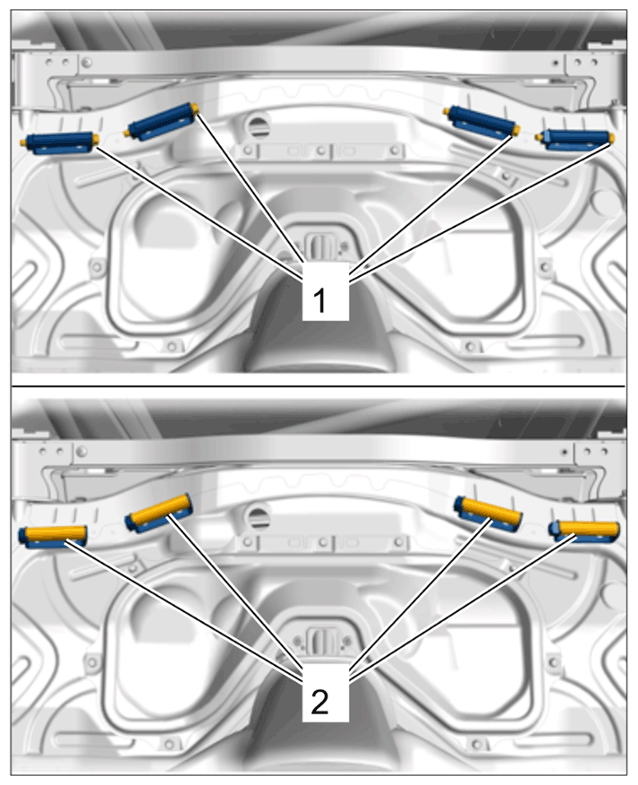

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Shoulder belt sleeve
Fastening screws for shoulder belt clip		Tightening torque	20 (15 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Shoulder belt clip

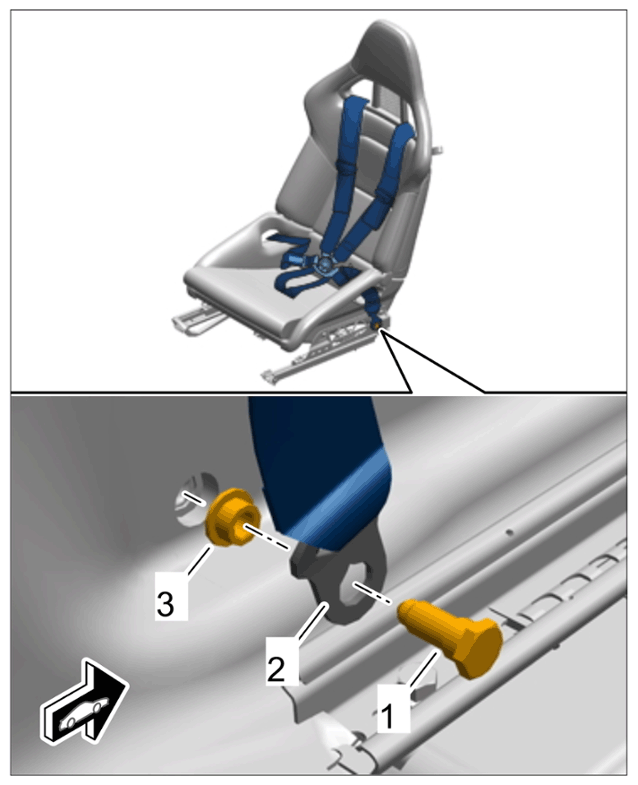

Fastening screw securing front seat-belt mount to floor Item 1		Tightening torque	50 (37 ftlb.) Nm

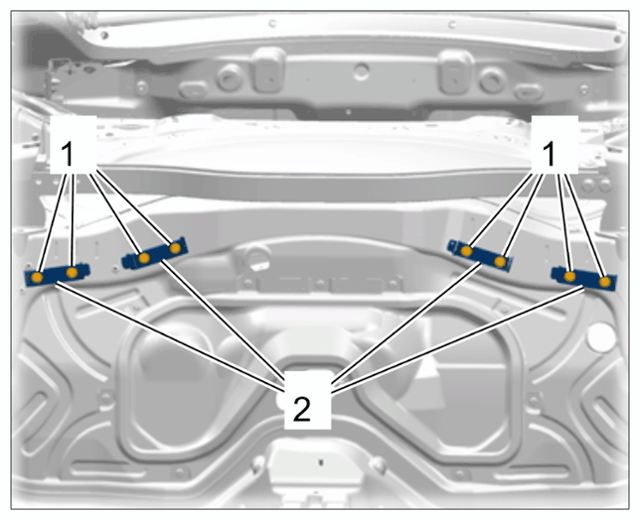

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening front fastening point

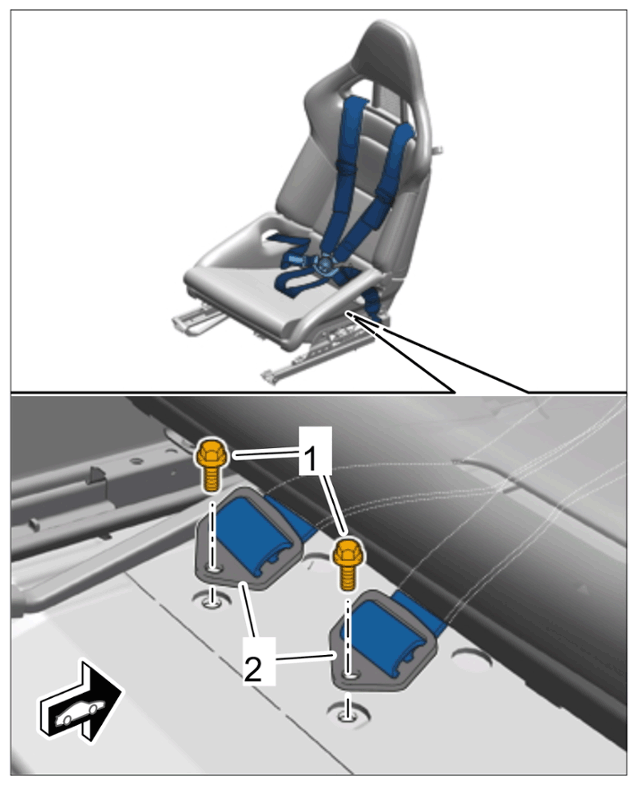

Fastening screw securing side seat-belt mount to B-pillar Item 1		Tightening torque	50 (37 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening side fastening point

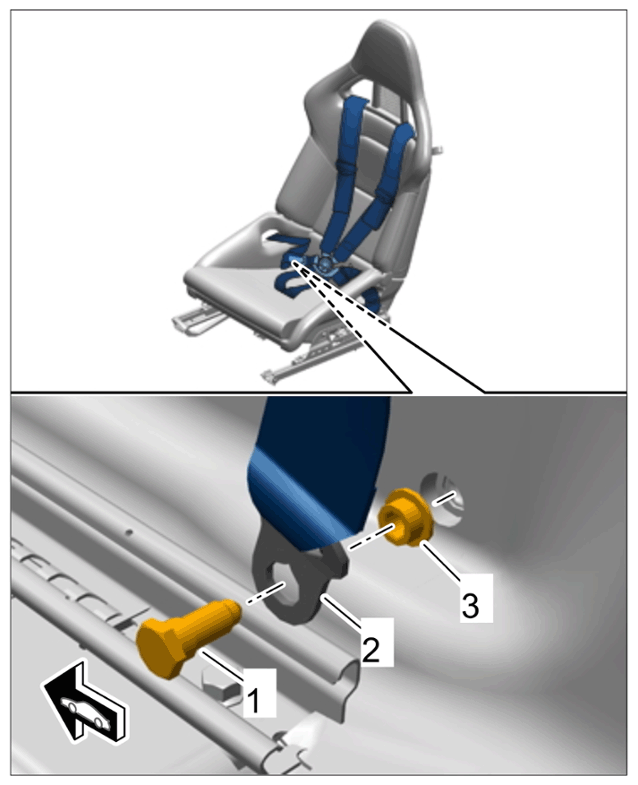

Fastening screw securing side seat-belt mount to centre tunnel	Item 1	Tightening torque	50 (37 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening side fastening point
