WM, 505619 Removing And Installing Front Wheel Housing Liner: Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Fastening screw securing front part of wheel housing liner to body	Item 2	Tightening torque	3 (2 ftlb.) Nm

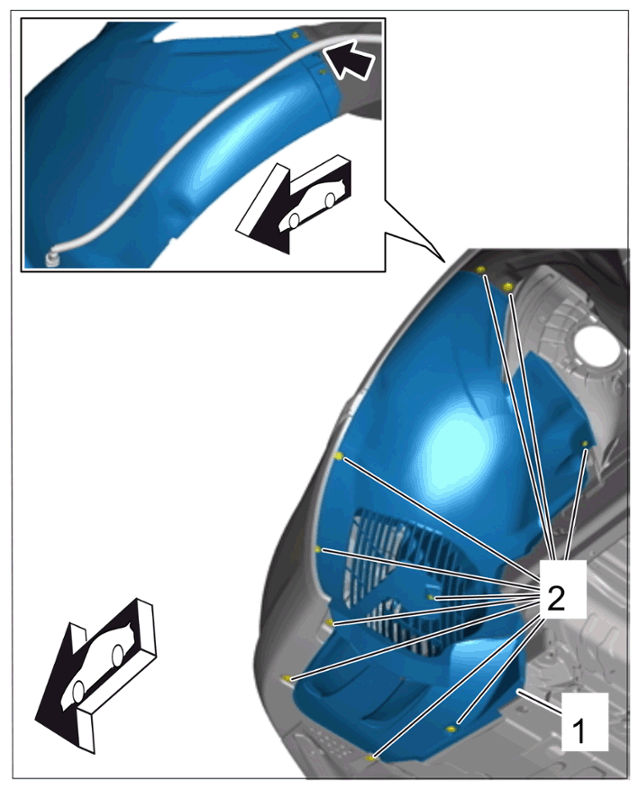

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing front wheel housing liner - front part
Fastening screw securing rear part of wheel housing liner to body	Item 2	Tightening torque	3 (2 ftlb.) Nm

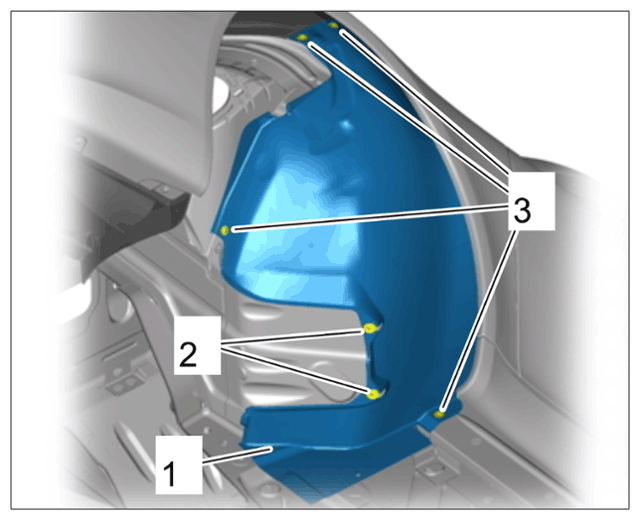

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing front wheel housing liner - rear part
Fastening nuts securing rear part of wheel housing liner to body	Item 3	Tightening torque	3 (2 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing front wheel housing liner - rear part
