WM, 503955 Replacing Spring Strut Mount: Notes
Parts
PART NUMBER DESCRIPTION
| Part number | Description | Addition | Quantity |
|---|---|---|---|
| > 99919022701 | BLIND RIVET 999.190.227.01 |
Tools
TOOL DESCRIPTION
| Tool denomination | Type | Tool number | Image |
|---|---|---|---|

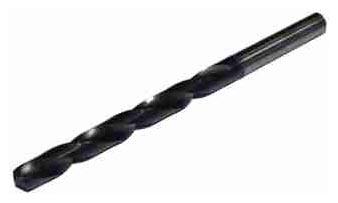

| twist drill | Commercially available tool | > Nr.201 | |
| Hot-Air Blower | General workshop equipment | > V.A.G 1416 |
Technical values
TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Connection point for section of spring strut mount | Cut | Length | 20 mm | ||
| Drill bit | Diameter | 6.5 mm | |||
| Applying adhesive | Application depth | 3.0 mm |
