WM, 501055 Replacing Front Closing Panel: Notes
Parts
PART NUMBER DESCRIPTION
| Part number | Description | Addition | Quantity |
|---|---|---|---|
| > 00004320759 | BLIND RIVET 000.043.207.59 |
Tools
TOOL DESCRIPTION
| Tool denomination | Type | Tool number | Image |
|---|---|---|---|

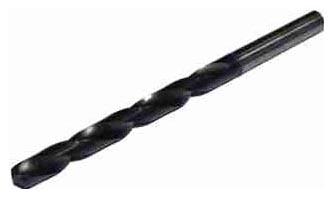

| twist drill | Commercially available tool | > Nr.201 | |
| Countersink | Commercially available tool | > Nr.202 |
Technical values
TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Twist drill | Diameter | 6.5 mm | |||
| Twist drill, | diameter | 6.6 mm |
