Removing Wire Harness For PARKASSIST

  1. Release and unplug electric plug connections -1-  .

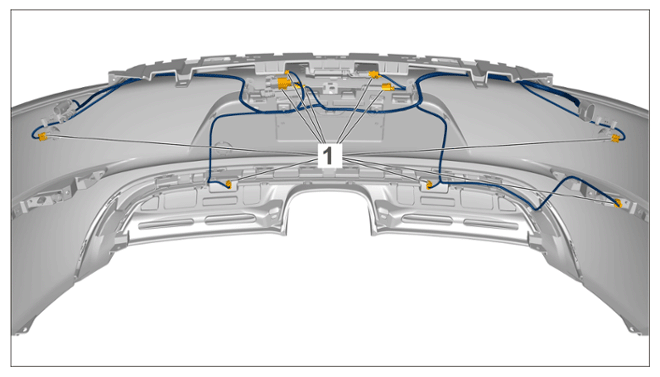

    G16226132Courtesy of GENERAL MOTORS COMPANY

    Electric plug connections

  2. Remove wire harness.

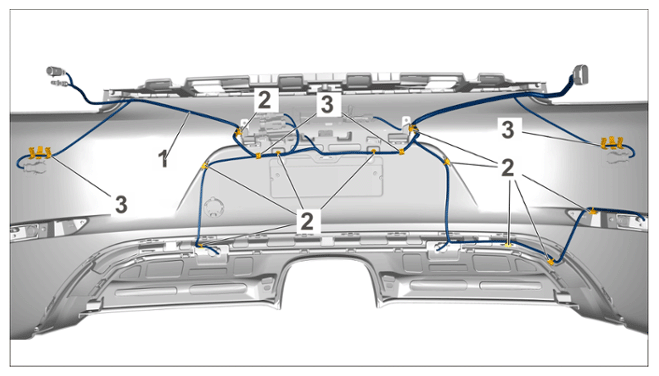

    G16226133Courtesy of GENERAL MOTORS COMPANY

    Wire harness mountings

    1. 2.1  Loosen wire harness -1-  from the tie-wraps -2-  .
    2. 2.2  Remove wire harness -1-  from the brackets -3-  .
