Technical Values

TIGHTENING TORQUE SPECIFICATION

Location	Type	Basic val...	Toleranc...
Window regulator motor to power windows mechanism	Tightening torque	4.7 N.m (3.5 ft lb.)	+/- 0.5 N.m (0.3 ft lb.)

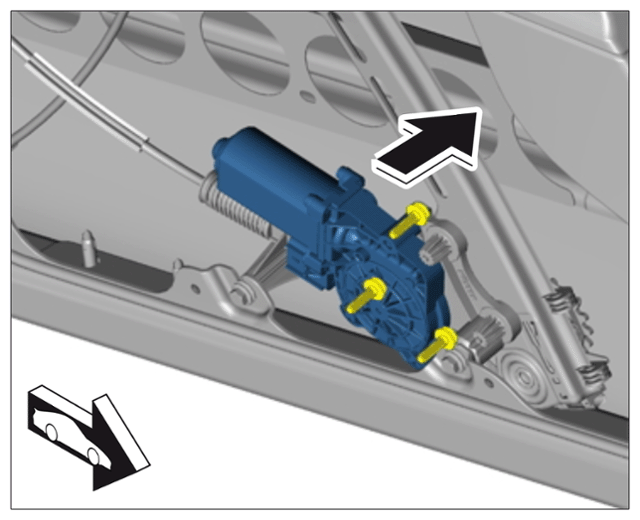

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing window regulator motor
Fastening nut for power windows mechanism	Tightening torque	9.7 N.m (7.5 ft lb.)	+/- 0.9 N.m (0.5 ft lb.)

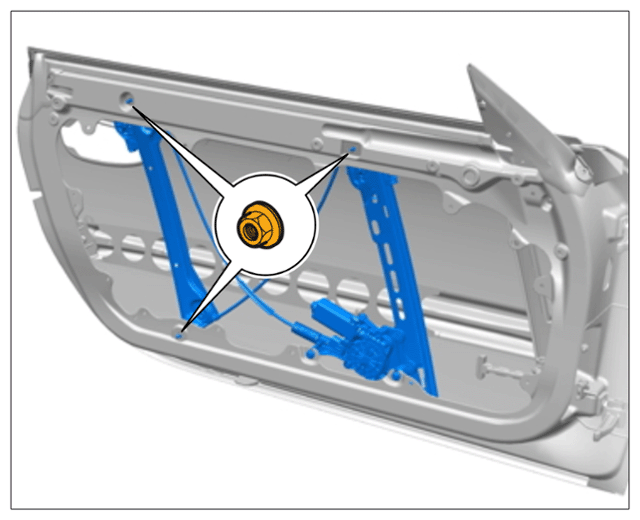

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screwing off fastening nuts
