Removing Front Power Windows

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

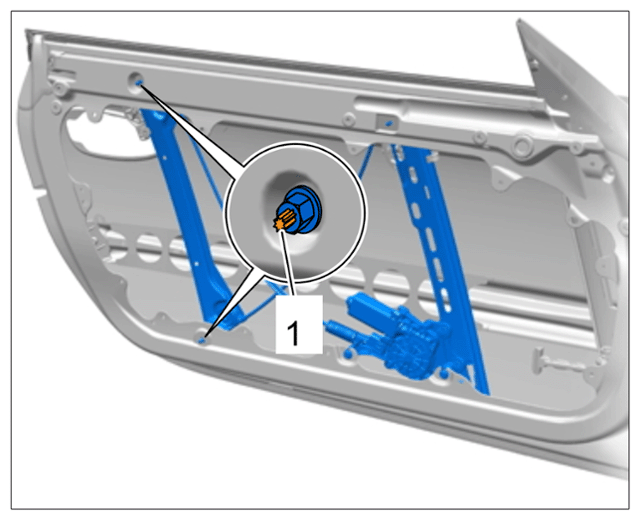

Adjusting screw

• Do not turn adjusting screws -1- during the fitting procedure.
• The adjusting screws -1- on the power windows spare part are preset.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

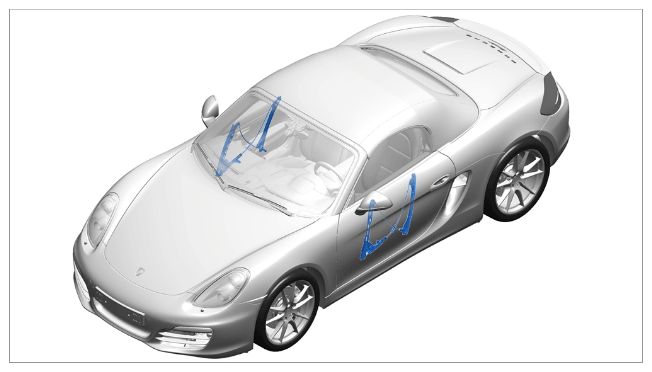

Installation position of power windows mechanism

1. Screw off fastening nuts.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

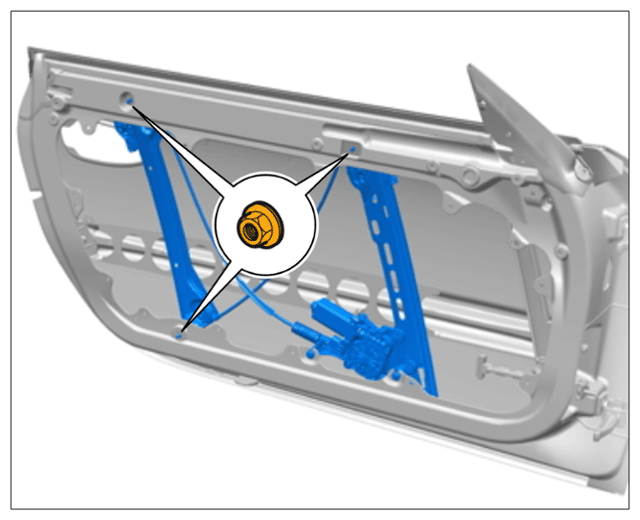

   Screwing off fastening nuts

2. Loosen fastening screws for window regulator motor -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

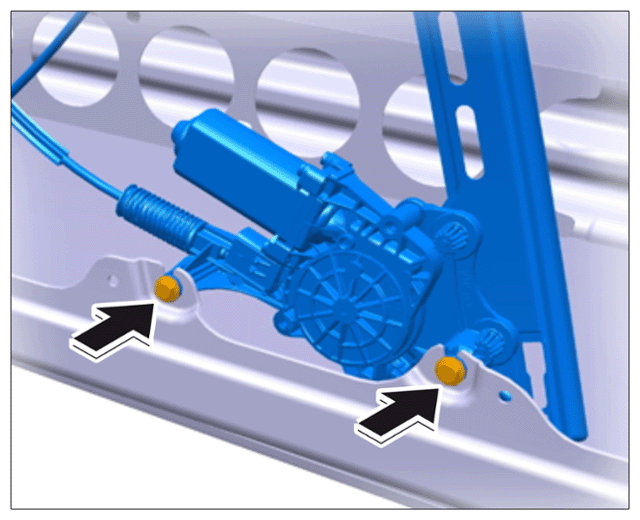

   Fastening screws for window regulator motor

3. Remove power windows unit through the door opening.
