Removing Front Window Shaft Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

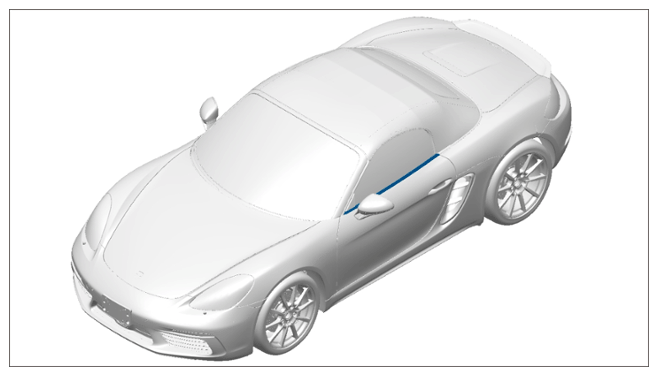

Installation position of window channel seal

1. Open the front door window fully.
2. Open doors.
3. Detach window channel seal -1-  from the door panel flange using a plastic wedge, starting at the rear area -arrow A-  and continuing up to the cover on the mirror attachment point finisher -2-  .
4. Pull rubber seal -3-  forward -arrow B-  and remove it.
5. Carefully pull window channel seal -1-  out to the rear -arrow C-  and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

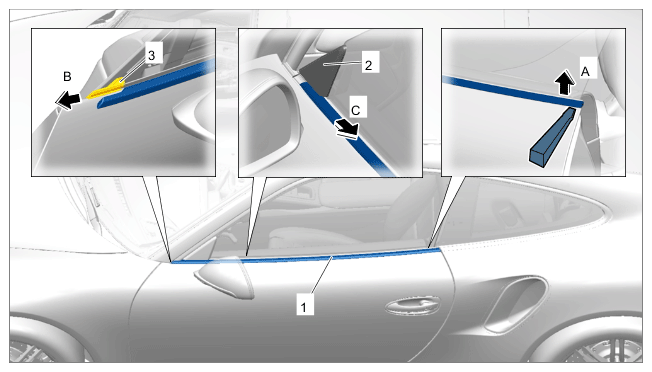

   Removing window channel seal
