Home >> Porsche >> 2020 >> 718 Spyder >> Repair and Diagnosis >> Accessories & Equipment >> Window Motors & Regulators >> 64 Glazing, Window Operation -- 718 SPYDER >> WM, 644519 Removing And Installing Front Window Guide >> Remove Front Window Guide >> Removing Front Window Guide

Removing Front Window Guide

  1. Remove door window guide.

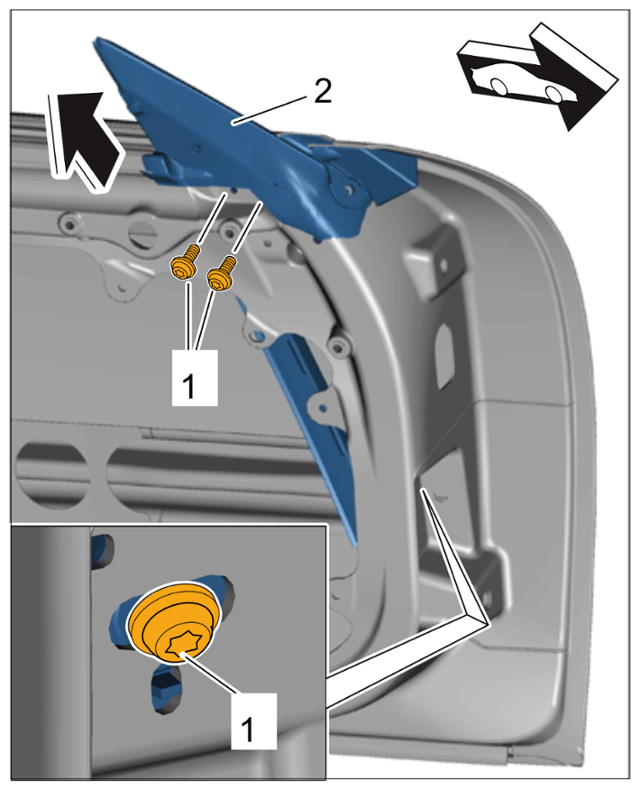

    G16225236Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing window guide

    1. 1.1 Unscrew fastening screws -1-  at the top and bottom.
    2. 1.2 Remove the window guide -2-  by pulling it up -Arrow-  .
