Installing Front Window Guide

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

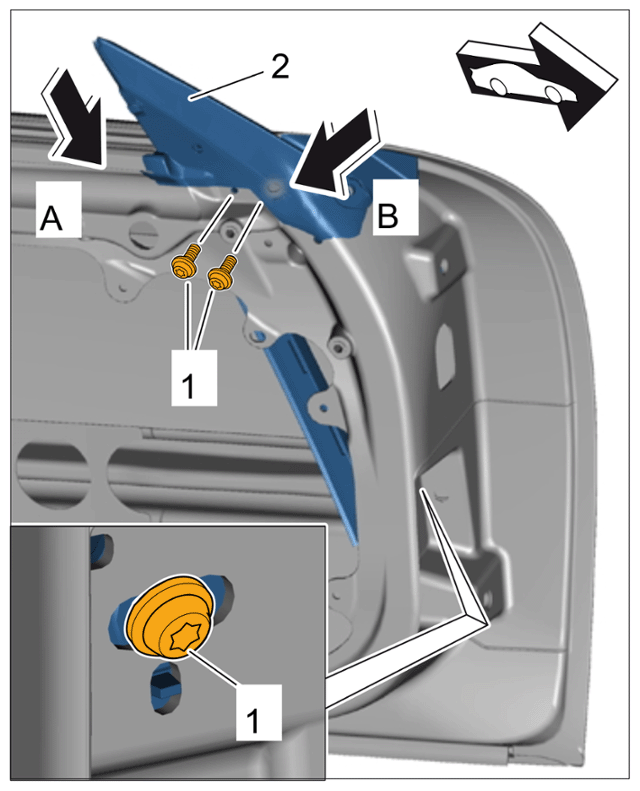

Installing window guide

1. 1.1 Insert the window guide -2-  (-arrow A-  ).
2. 1.2 Align the window guide (seal) and press it into the door -arrow B-  .
3. 1.3 At the top and bottom of the window guide -2-  , tighten the fastening screws -1-  to > Tightening torque 9.7 N.m (7.5 ft lb.)  .

Information

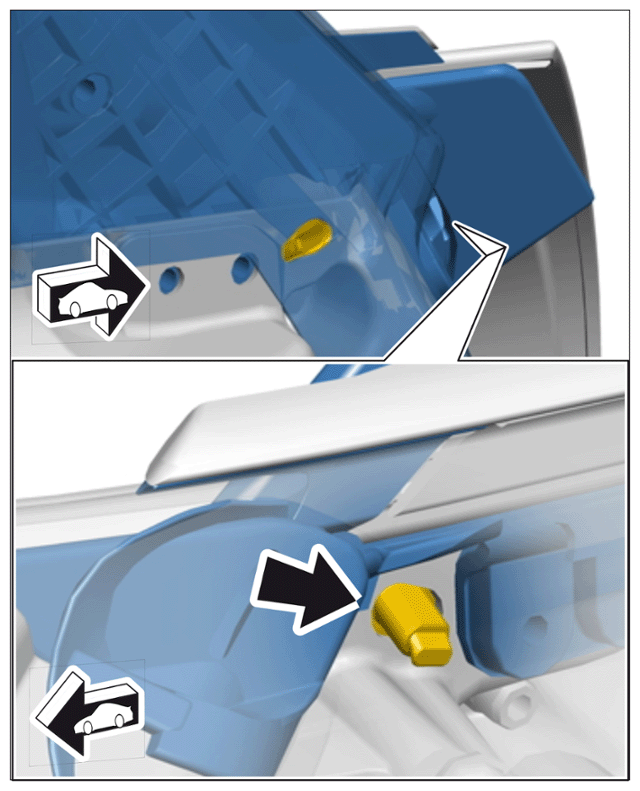

Make sure that the water drain is positioned correctly -arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Window guide water drain
