Technical Values

TIGHTENING TORQUE SPECIFICATION

Location	Des...	Type	Basic val...	Toleranc...

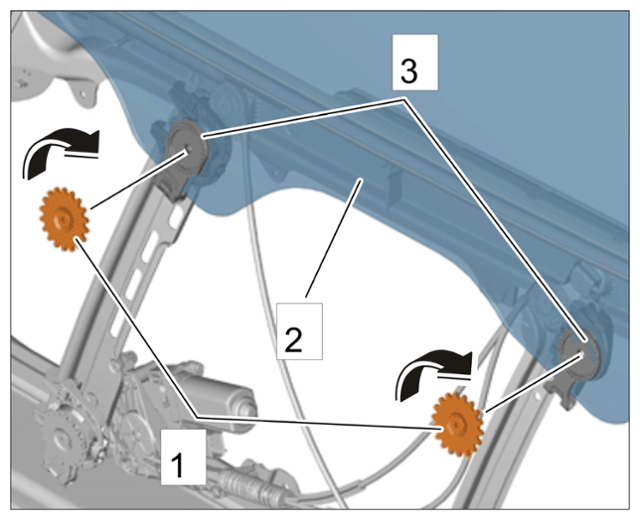

Fastening screw for door window	Use special tool	Tightening torque	7 N.m (5 ft lb.)	+/- 0.9 N.m (0.5 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing door window glass

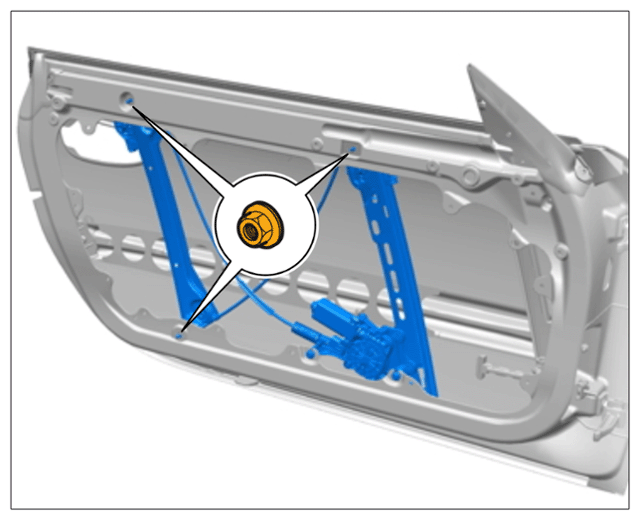

Fastening nut for power windows mechanism		Tightening torque	9.7 N.m (7.5 ft lb.)	+/- 0.9 N.m (0.5 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screwing off fastening nuts

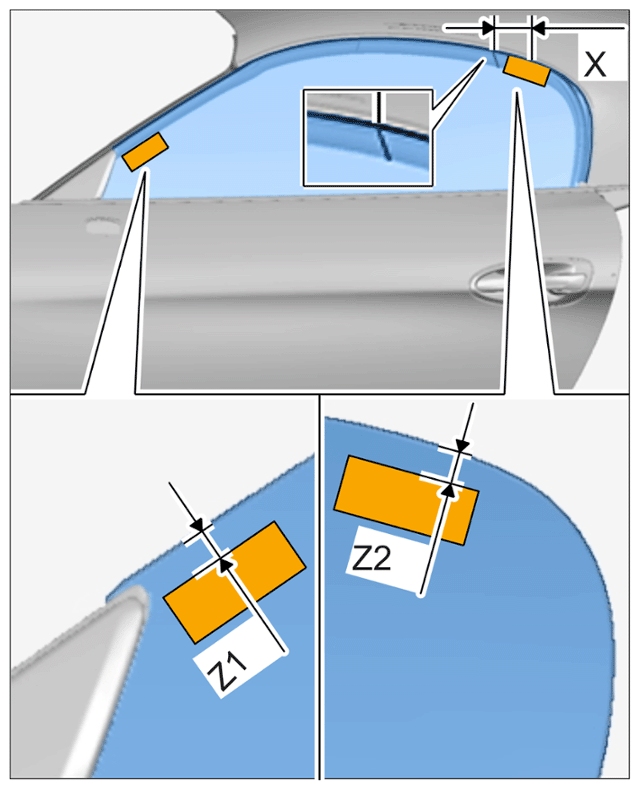

Insertion depth of front door window	Z1	Adjustment value	3.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Insertion depth of front door window Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Insertion depth of front door window
Insertion depth of rear door window	Z2	Adjustment value	6.0 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Insertion depth of front door window Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Insertion depth of front door window

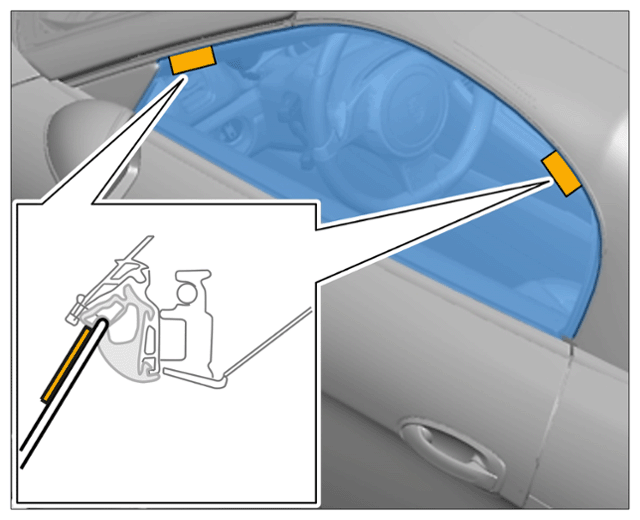

Measuring point gap Z2	X	Gap dimension	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Applying markings

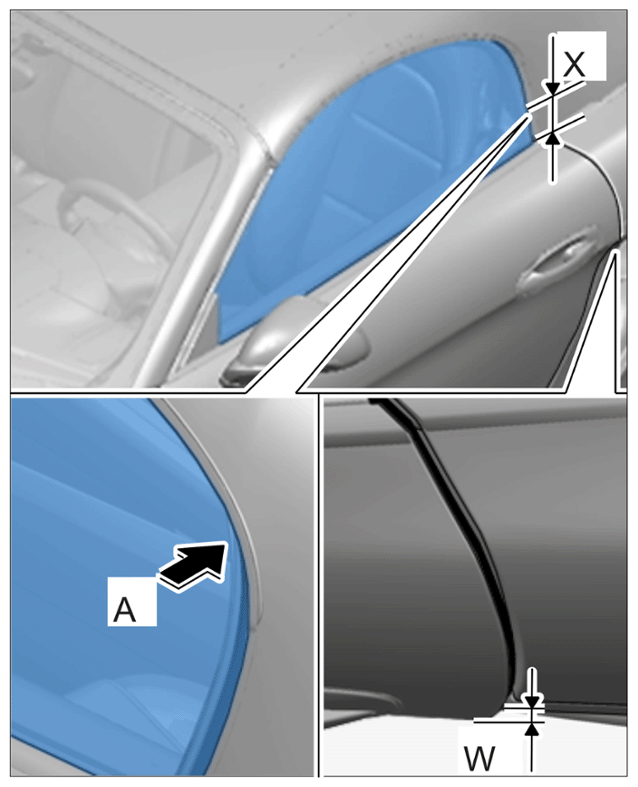

Measuring point gap	X	Gap dimension	100 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door in open position
Door opening	W	Adjustment value	8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door in open position
