Installing Windscreen

CAUTION: Danger of material damage if specified curing time of adhesive is not observed! In order to ensure that the bonded joint is sufficiently strong, the following boundary conditions must be adhered to:

The vehicle must not be used until the curing time has elapsed.
Curing time: 2 hours
Temperature: at least 10°C
Fixing time: approx. 1 hour

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Application time

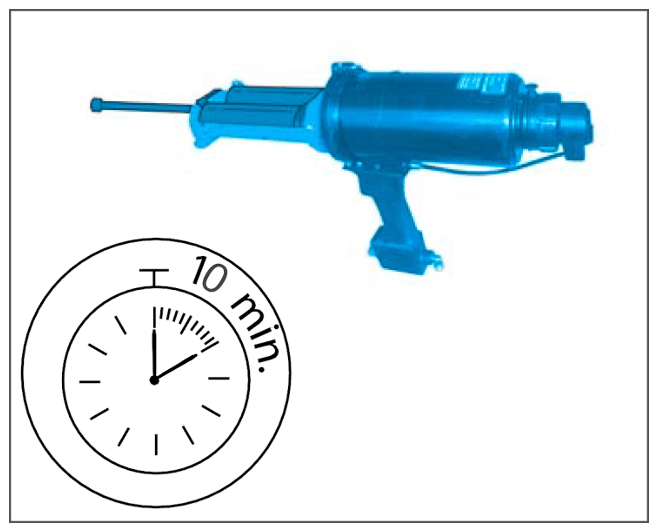

The processing time of the adhesive at room temperature (23°C) is: 10 min. The adhesive must be applied and the component must be joined within this time.
To ensure that the substance is completely mixed, apply a bead of fresh adhesive that is approx. 10-20 cm long to a piece of cardboard before using it.
Also apply a bead of adhesive approx. 10 cm long to a solid surface to test it.
An adhesive set produces a bead of 6 m of adhesive. Have several adhesive sets ready if necessary.

Information

Check stop bits and replace if necessary.

Prepare adhesive for processing.
> 6X00IN GENERAL INFORMATION ON REMOVING AND INSTALLING CAR WINDOWS

"2-component window bonding agent, set"; see Porsche Spare Parts Catalogue, Main Group 8

> WM, 6X00IN22 USING PORSCHE 2-COMPONENT WINDOW ADHESIVE

Information
- The adhesive bead must overlap by approx. 30 mm at the beginning and end.

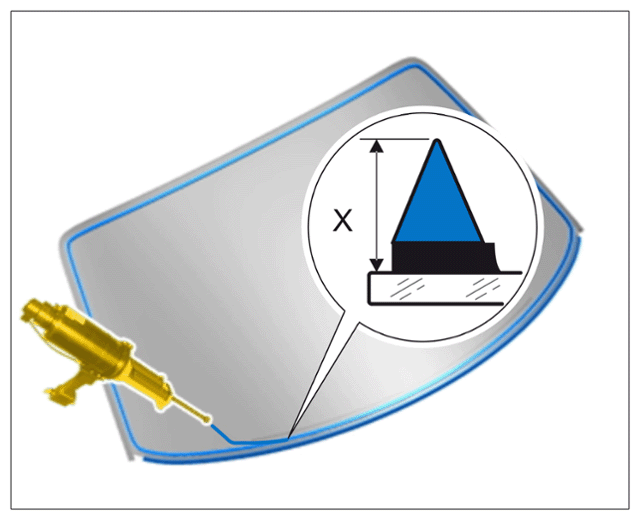

Use > VAS 5237 - Double cartridge gun to apply adhesive along the preliminary coat on the windscreen or on the primer as a triangular bead measuring -dimension X- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Apply adhesive

> Application depth 15 mm

Information
- Two people required.
Insert the windscreen into the body.
1. 3.1 Affix suction cups to the windscreen.
2. 3.2 Guide the windscreen into the window aperture.

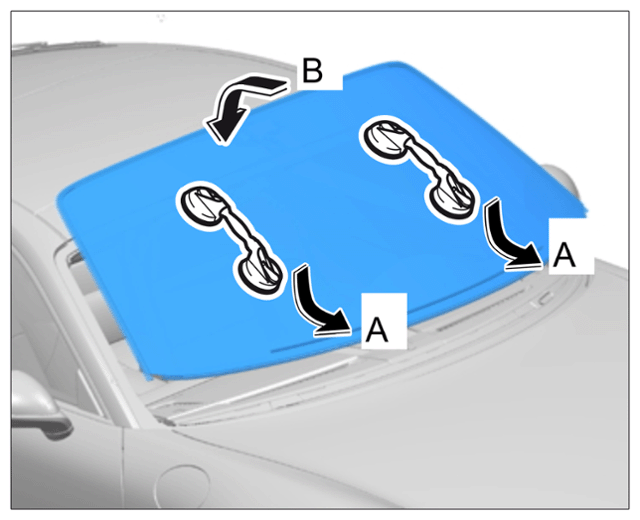

3. 3.3 Position the windscreen on the lower edge -arrows A- and fit it -arrow B- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inserting windscreen

Adjust windscreen gap.

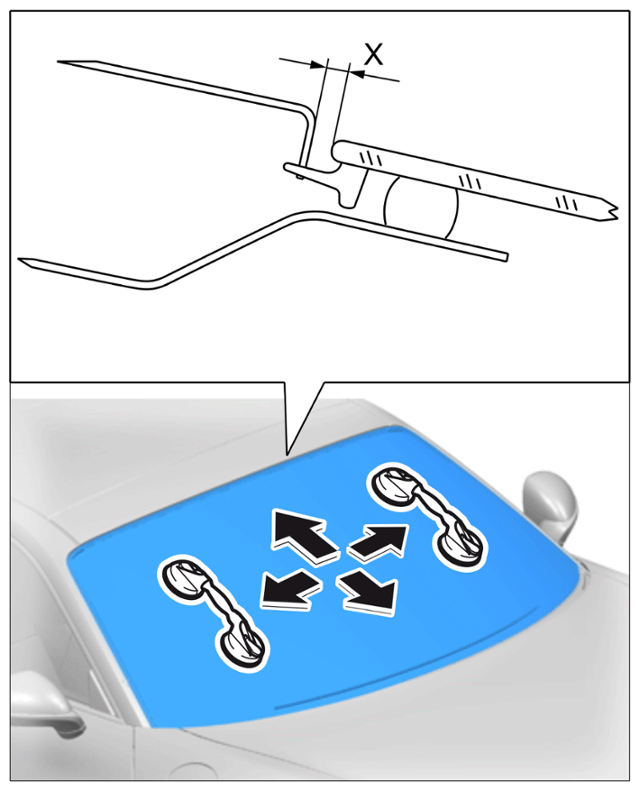

4.1 Adjust the size of the gap -X- by moving the windscreen. > Gap dimension 3.0 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of windscreen

4.2 Remove suction cups.

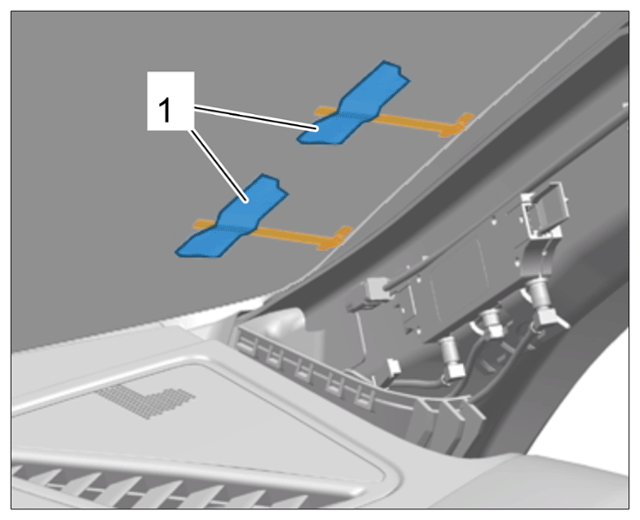

4.3 Secure the windscreen with adhesive tape -1- to prevent it from slipping.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing the windscreen

Remove any adhesive that has oozed out immediately and clean the affected visible areas using cleaning agent.

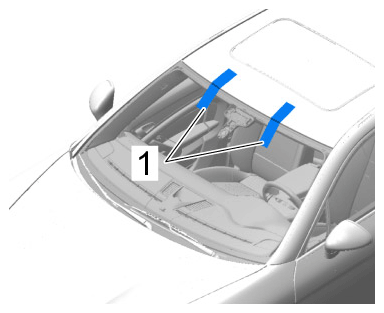

Remove adhesive tape -1- and disconnect all electric plug connections from the windscreen.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting electric plug connections
Plug in electric plug connections on the A-pillar at the left and right.
Plug in electric plug connections on antennas on both sides of the vehicle.
