Removing And Installing Lumbar Support

  1. Remove fixing clips -2-  , fold tab over and remove lumbar support -1-  .

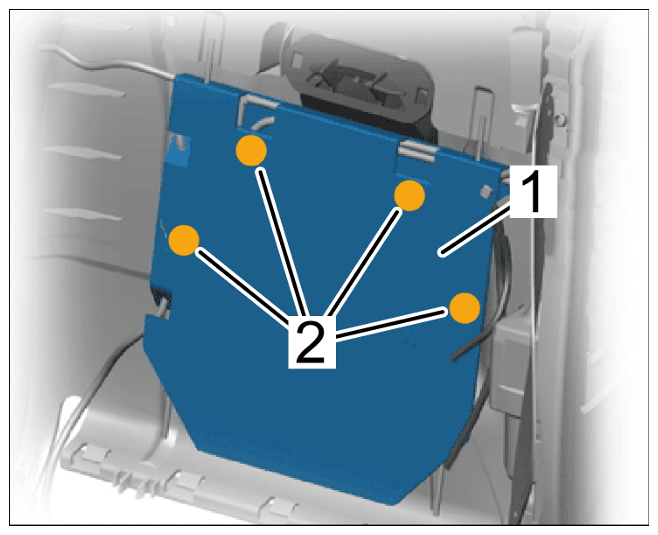

    G16224633Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing lumbar support

  2. Installation is performed in reverse order.
