Removing Outer Backrest Cover

1. Unscrew screw -1-  at the side from the outer backrest cover -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing screw at the side

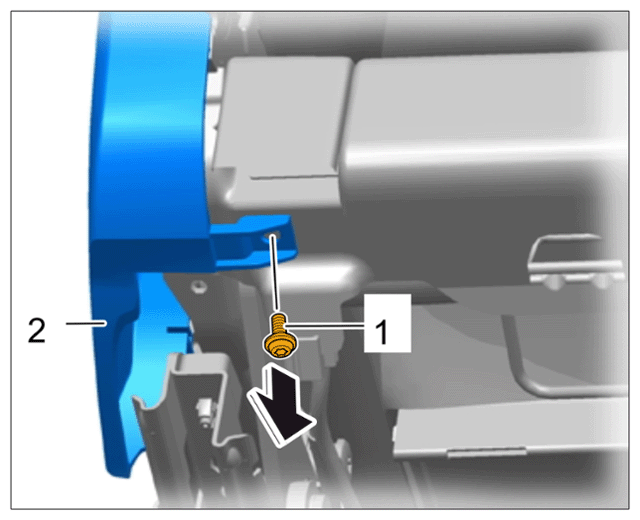

2. Unscrew screw -1-  at the bottom from the outer backrest cover -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing screw at the bottom

   Information

   Replace backrest cover if it is damaged during removal.

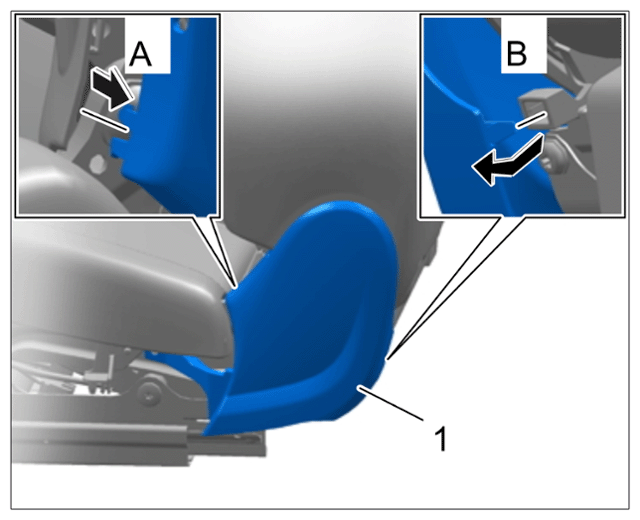

3. Unclip outer backrest cover -1-  at the front -arrow A-  and guide it out at the rear -arrow B-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing outer backrest cover
