Technical Values
TIGHTENING TORQUE SPECIFICATION
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

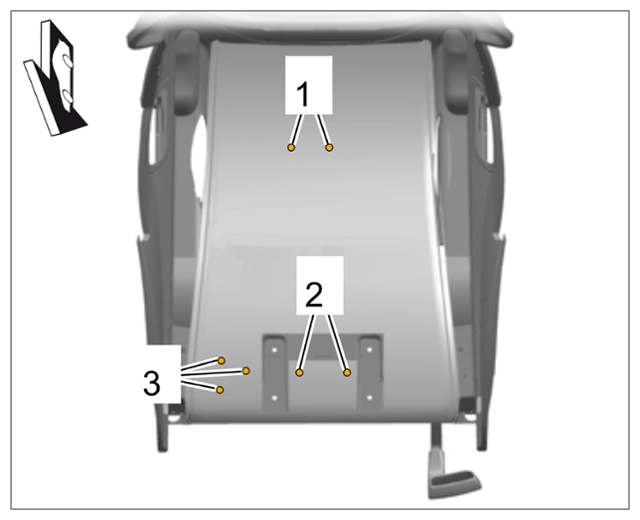

| Holder for plug connections on seat shell | Item 2 (M5 x 16) | Tightening torque | 4 N.m (3 ft lb.) | ||
|
Securing brackets |
|||||
| Control unit holder to seat shell | Item 3 (M5 x 16) | Tightening torque | 6 (4.5 ft lb) Nm | ||
|
Securing brackets |
|||||
