Assembling Cushion Carrier For Front Backrest

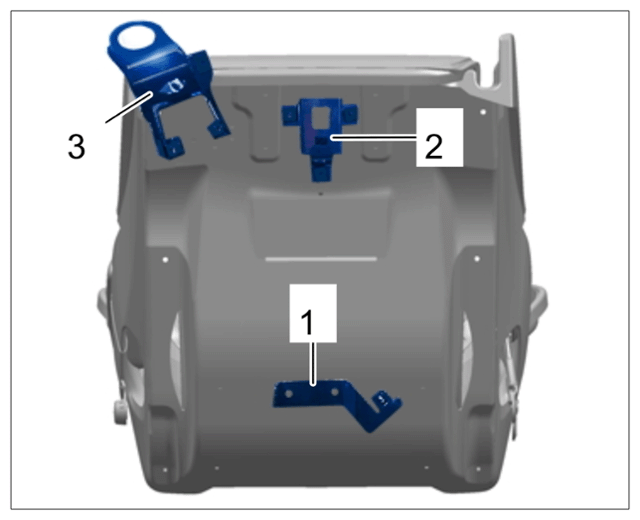

1. Position mounting supports.
   1. 1.1  Position holder -1-  for connector for pressure sensor mat.
   2. 1.2  Position support for connector holder -2-  and tighten fastening screws.
   3. 1.3  Position support for control unit -3-  and tighten fastening screws.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting supports

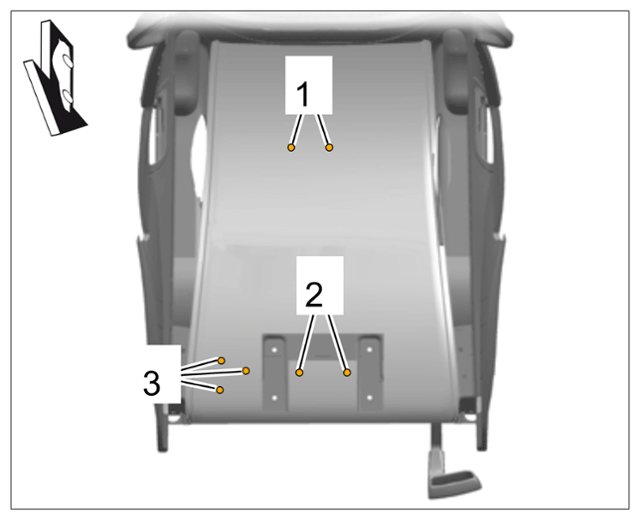

2. Secure supports.
   1. 2.1  Rivet bracket for pressure sensor mat connector -1-  .
   2. 2.2  Tighten fastening screws -2-  and -3-  to the tightening torque.

   Item 2 > Tightening torque 4 N.m (3 ft lb.)

   Item 3 > Tightening torque 6 (4.5 ft lb) Nm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Support threading

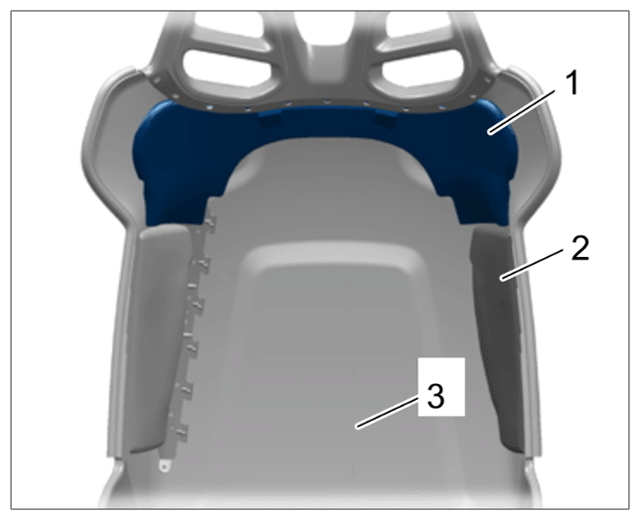

3. Install filler piece -1-  and -2-  in the backrest cushion carrier -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front seat filler piece
