Technical Values

TIGHTENING TORQUE SPECIFICATION

Location	Des...	Type	Basic val...	Toleranc...
Screw seat extension to seat	Item 3	Tightening torque	6 N.m (4.4 ft lb.)	+/- 1 N.m (0.7 ft lb.)

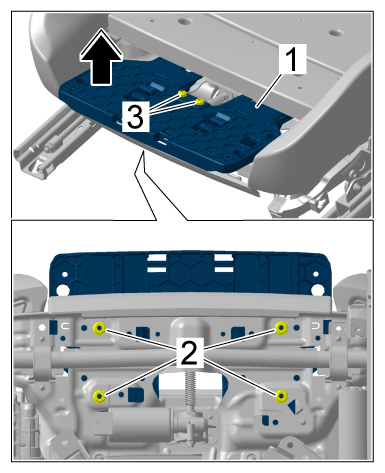

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Seat-surface extension, front
Holder for plug connections on seat shell	Item 2 (M5 x 16)	Tightening torque	4 N.m (3 ft lb.)

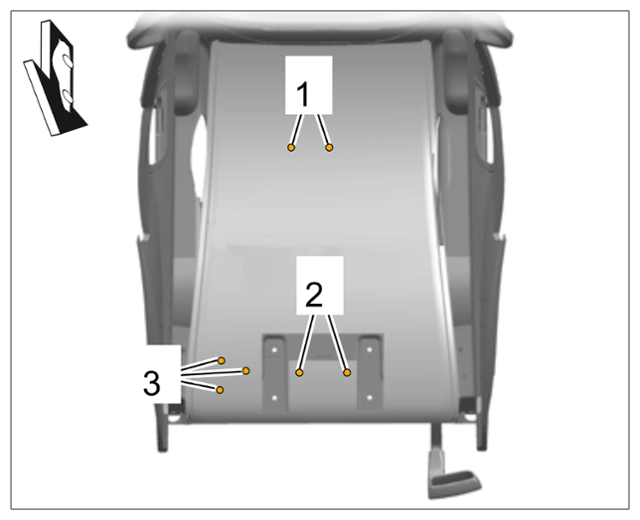

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Secure supports
