Assembling Cushion Carrier For Front Backrest

1. Position mounting supports.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

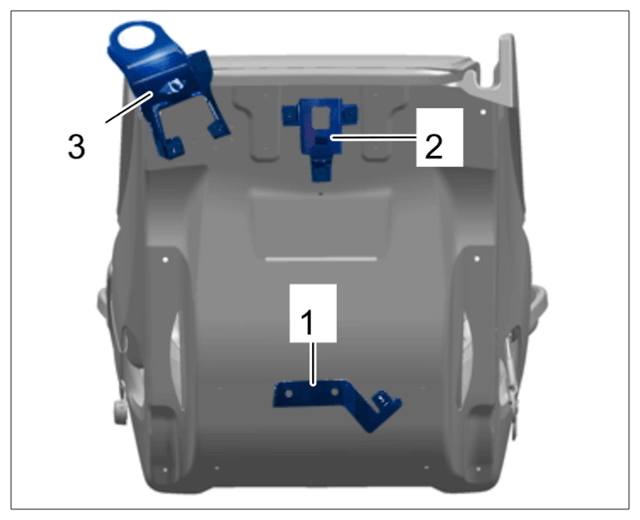

   Mounting supports

   1. 1.1  Position holder -1-  for connector for pressure sensor mat.
   2. 1.2  Position support for connector holder -2-  and tighten fastening screws.
   3. 1.3  Position support for control unit -3-  and tighten fastening screws.
2. Secure supports.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

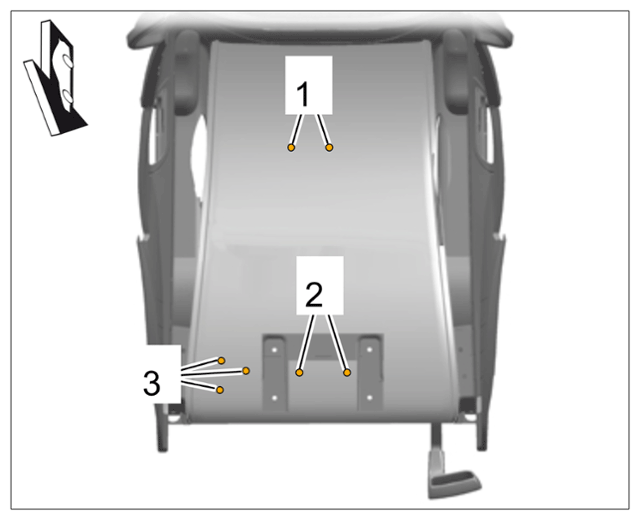

   Mounting supports

   1. 2.1  Rivet bracket for pressure sensor mat connector. -1-
   2. 2.2  Tighten screws -2-  with > Tightening torque 4 N.m (3 ft lb.) (3 ft lb.)  .
   3. 2.3  Tighten screws -3-  with > Tightening torque 6 N.m (4.4 ft lb.) +/- 1 N.m (0.7 ft lb.)  .
3. Install filler piece -1-  and -2-  in the backrest cushion carrier -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

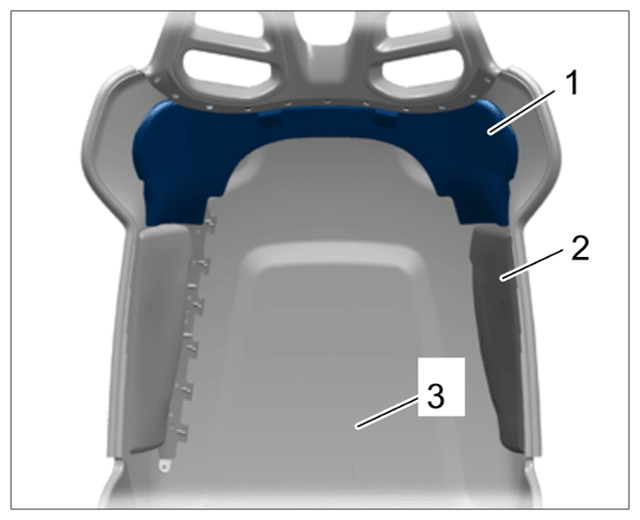

Filler piece
