Removing Backrest Frame

1. Hold backrest frame upright.

   Information

   The help of another person is required.

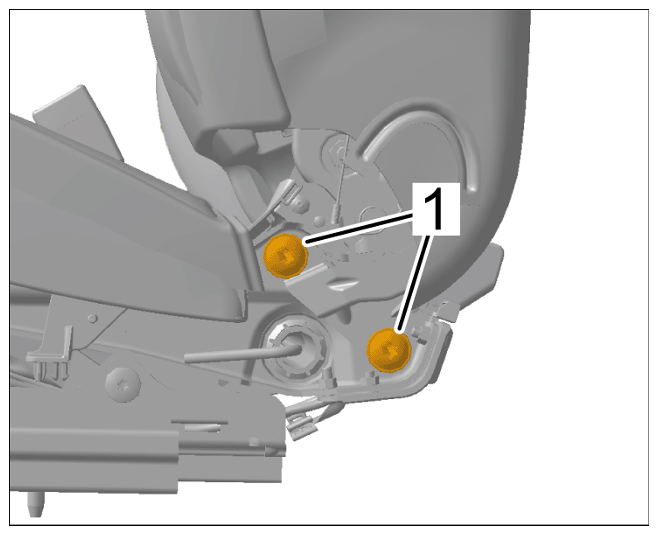

2. Unscrew screws -1-  at the left and right, remove support panels and loosen the backrest.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing screws for seat backrest

   Information

   The help of another person is required.

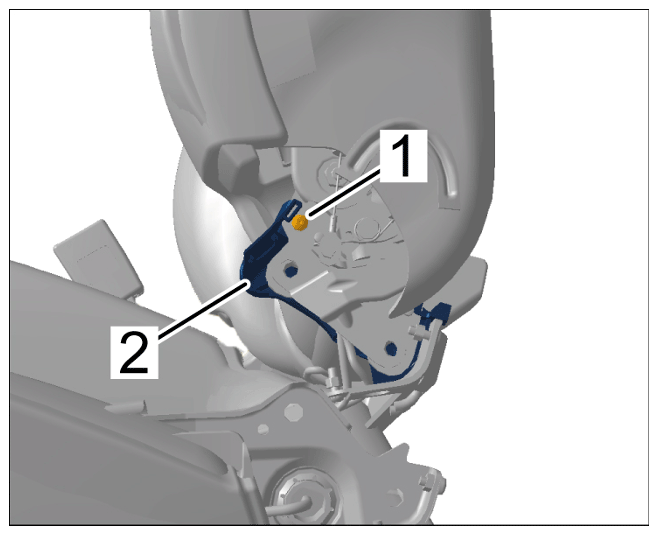

3. Unscrew and screw -1-  at the left and right and remove trim panel for inner backrest -2-  at the left and right.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing trim panel

   Information

   The help of another person is required.

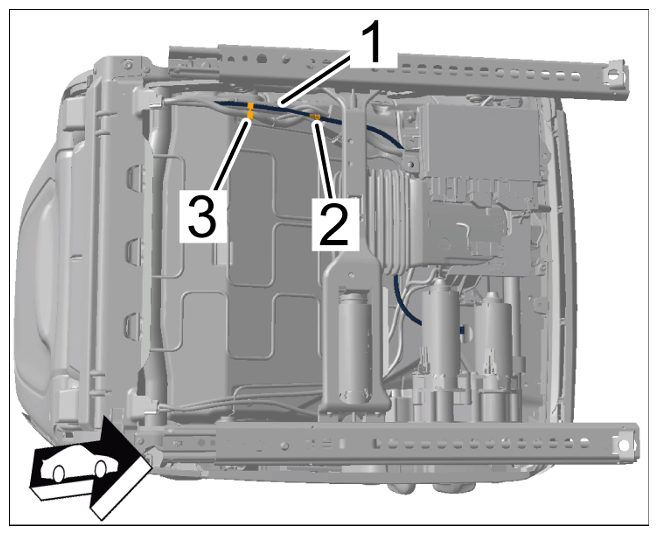

4. Guide out air connection line -1-  and remove backrest.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guiding out air connection line
