Removing Air Cushion For Backrest

Information

• Cut through air connection lines at a right angle.
• Do not crush air connection lines when cutting them.

1. Disconnect air connection line > Length 30 mm  away from the air cushion for backrest using a suitable tool > Disconnecting air connection line  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

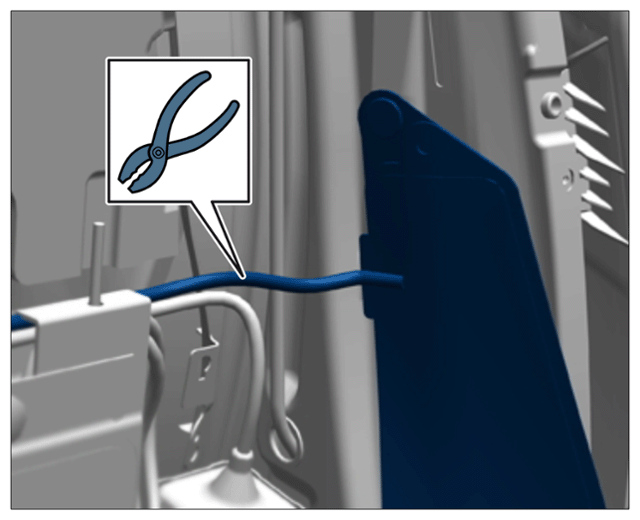

   Disconnecting air connection line

2. Press pins -2-  on the two expanding clips -1-  through -arrow A-  and remove expanding clips -arrows B-  .
3. Remove air cushion for backrest -3-  (-arrow C-  ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

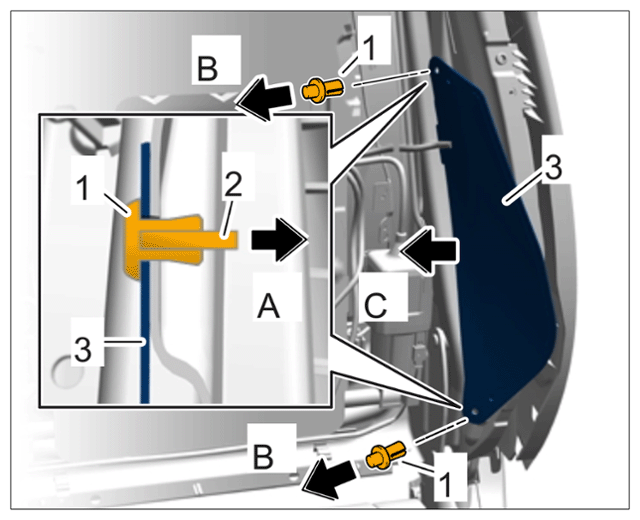

Removing air cushion for backrest
