Removing And Installing Trim Panel For Seat

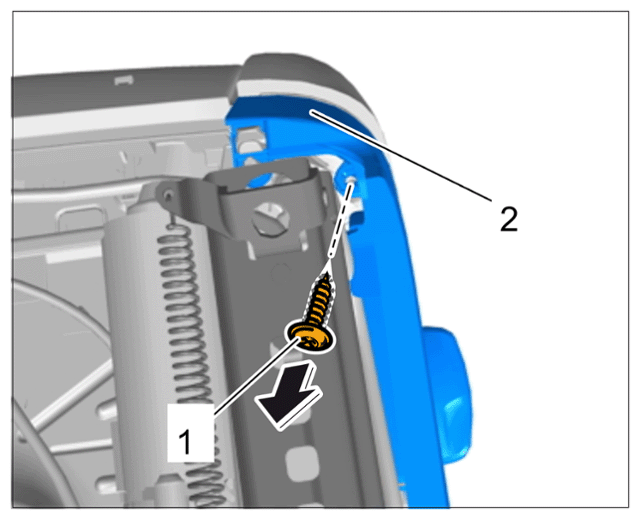

  1. Unscrew and remove front screw -1-  on trim panel for seat -2-  .
    G16224538Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing front screw

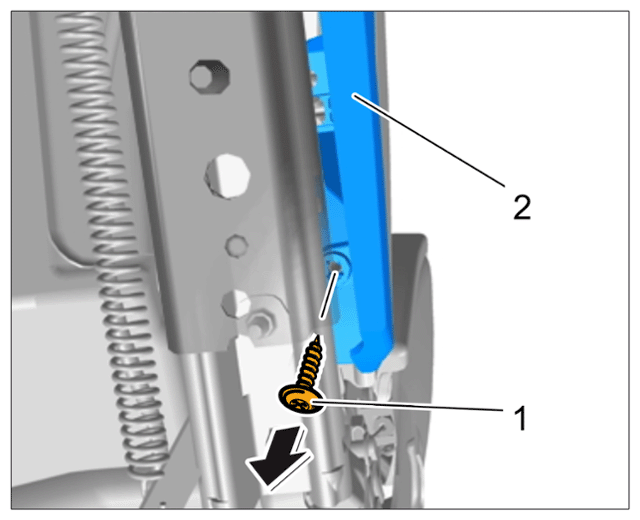

  2. Unscrew and remove rear screw -1-  on trim panel for seat -2-  .
    G16224539Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing rear screw

  3. Remove trim panel for seat.

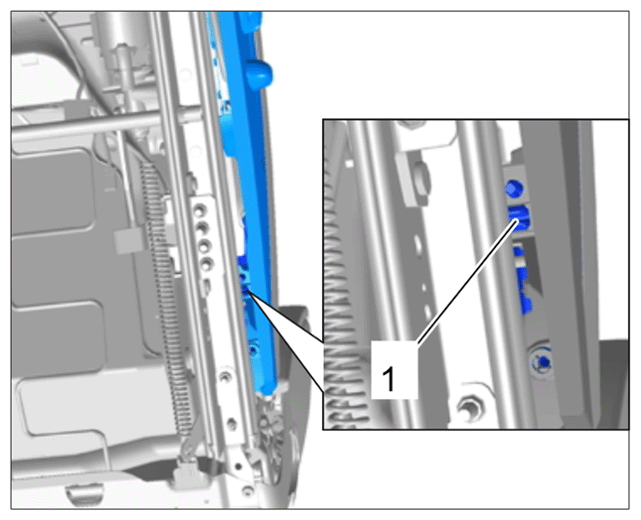

    1. 3.1  Press rear clip -1-  together and remove it.
      G16224540Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing rear clip

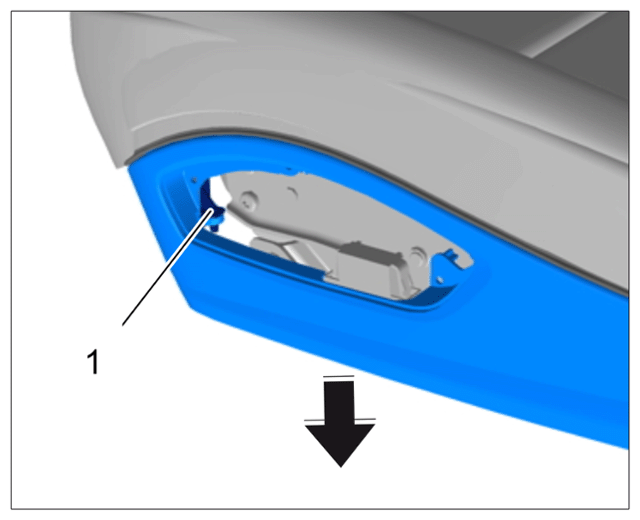

    2. 3.2  Press front clip -1-  together and remove it, then remove trim panel for seat -arrow-  .
    G16224541Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing trim panel for seat

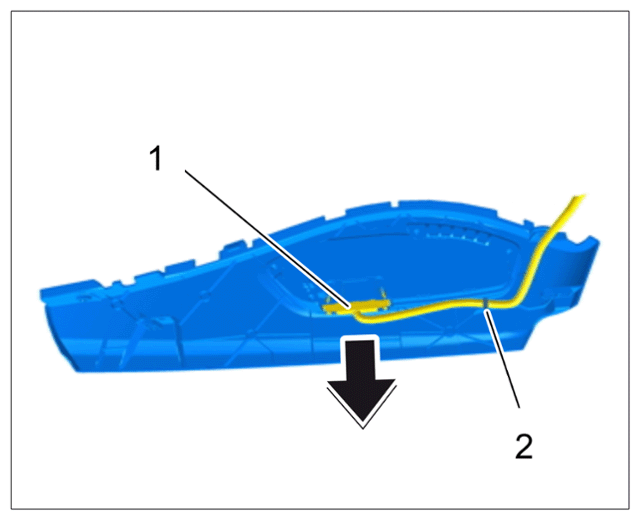

  4. Disconnect electric plug connection -1-  (-arrow-  ) and remove electric line for seat adjustment from the retaining clip -2-  .
    G16224542Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting electric plug connection

  5. To replace trim panel for seat, also do the following:

    Remove seat adjustment switch.

    > 728619 REMOVING AND INSTALLING SEAT ADJUSTMENT SWITCH
