Removing And Installing Air Cushion For Seat

Disconnect air connection line to air cushion for seat.

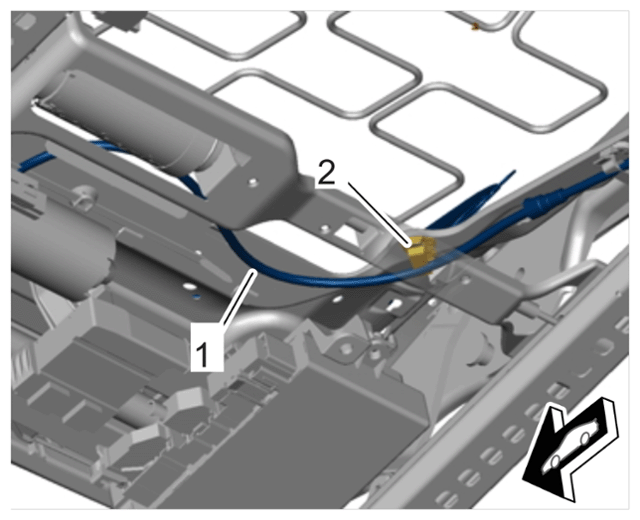

1.1 Disconnect air connection line -1- from clip -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting air connection line from clip

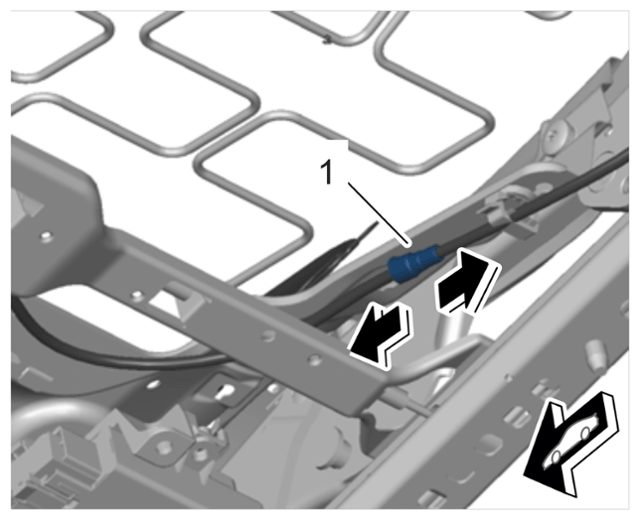

1.2 Disconnect connection coupling -1- for air connection line on the underside of the seat -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting air connection line

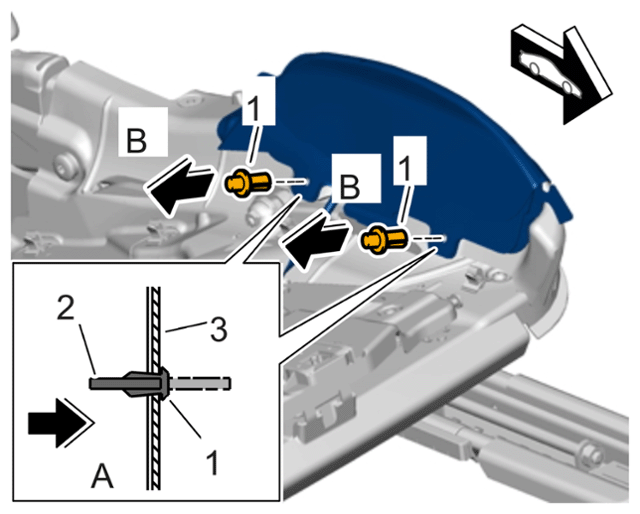

Press pins -2- on the two expanding clips -1- together -arrow A- and remove expanding clips -1- (-arrow B- ).
Remove air cushion for seat -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing air cushion for seat
Installation is performed in reverse order.
