Removing Seat Frame

Information

The help of another person is required to secure the backrest.

1. Hold backrest frame -2-  upright.
2. Unscrew screws -1-  at the left and right and remove backrest frame -2-  by pulling it up out of the seat frame -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

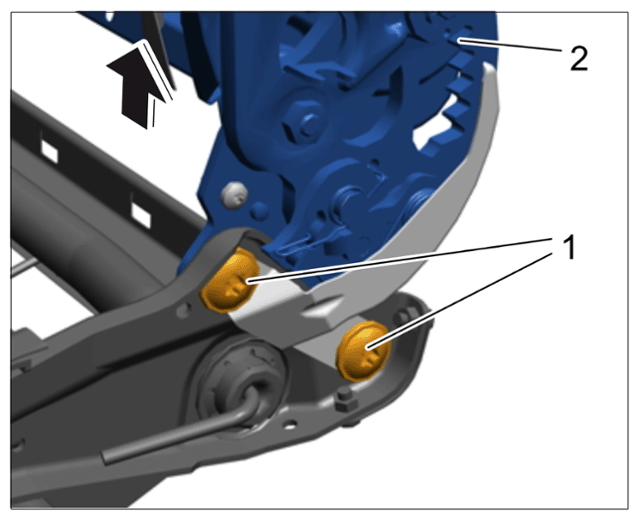

   Removing backrest frame

3. Remove seat frame.
