Technical Values
TIGHTENING TORQUE SPECIFICATION
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

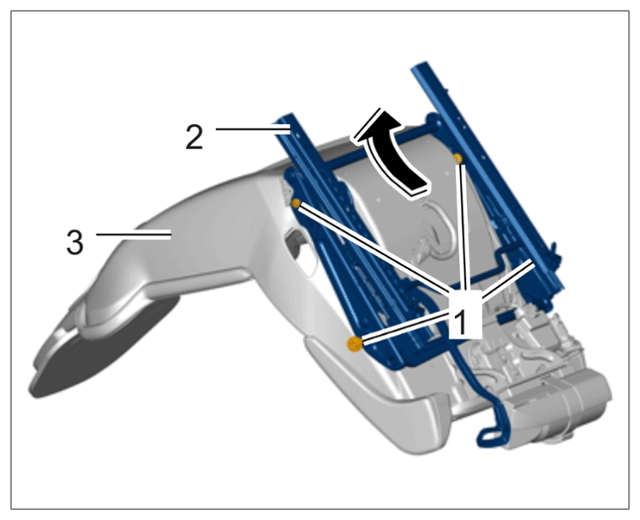

| Seat frame to seat shell | Item 1 (M8 x 40) | Tightening torque | 22 N.m (16 ft lb.) | ||
|
Removing seat frame |
|||||

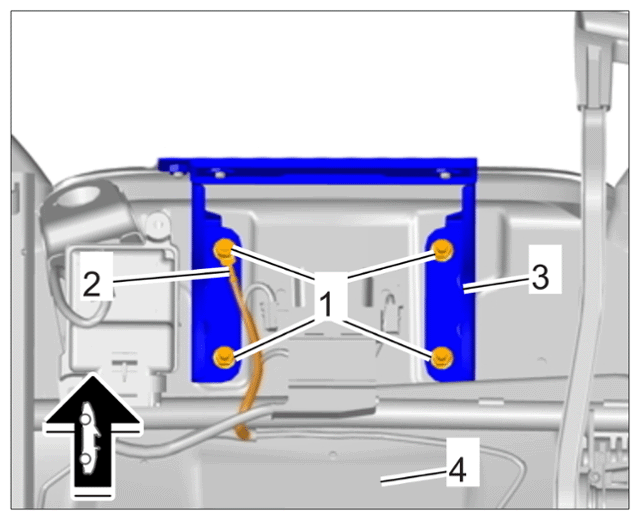

| Fastening nut securing fire extinguisher holder to seat shell | Item 1 (M6) | Tightening torque | 7 N.m (5 ft lb.) | ||
|
Removing bracket |
|||||
