Technical Values

TIGHTENING TORQUE SPECIFICATION

Location	Des...	Type	Basic val...

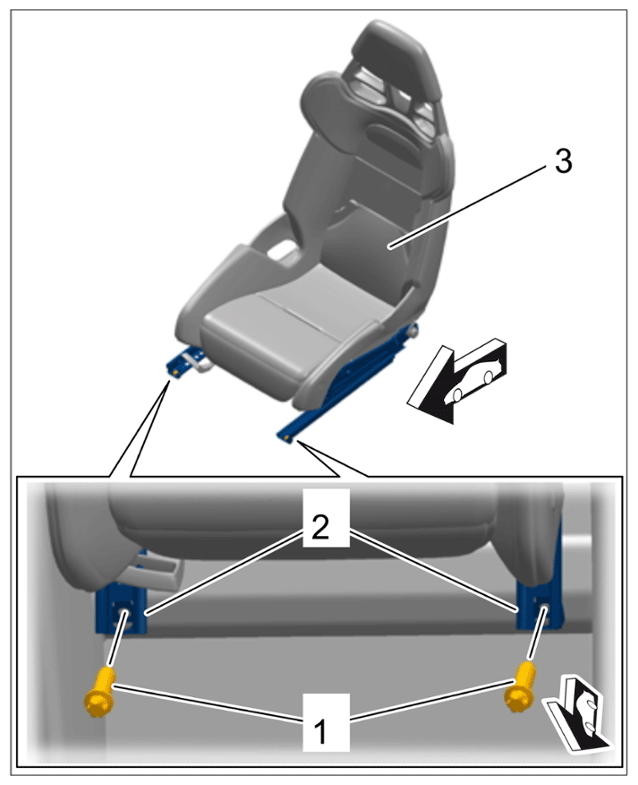

Screws securing front seat rail to body	Replace screws	Tightening torque	50 N.m (36.9 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Seat mounting

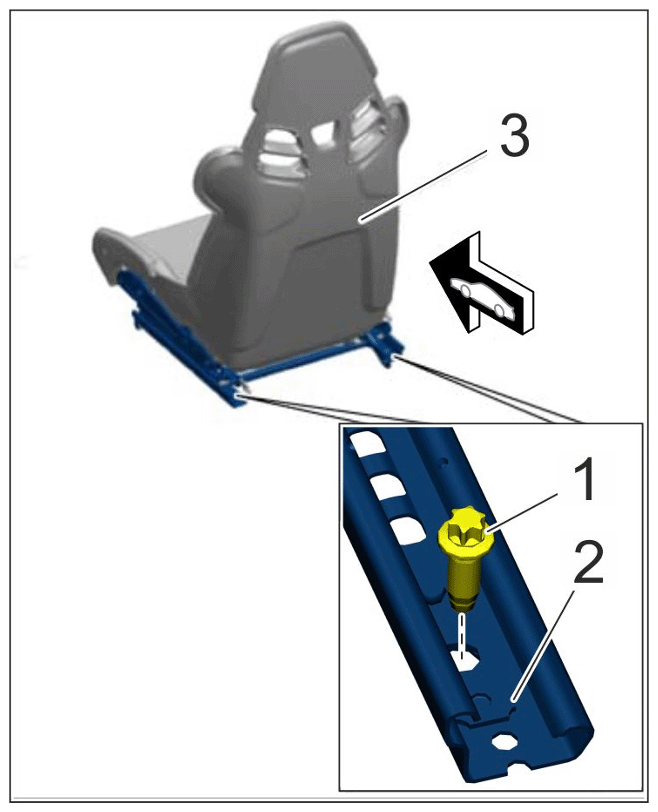

Screws securing rear seat rail to body	Replace screws	Tightening torque	50 N.m (36.9 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Seat mounting

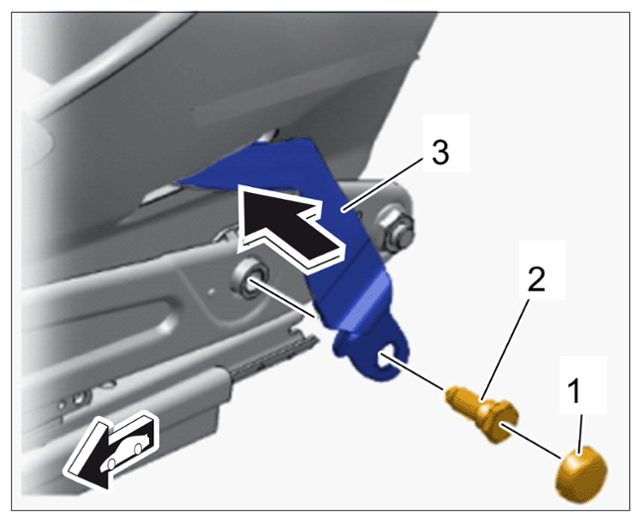

Screw securing the end of belt fitting to seat frame		Tightening torque	50 N.m (36.9 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Seat belt mount
