Removing Front Seat (Sports Bucket Seat)

WARNING: Improper handling of airbag units
  • Triggering of airbag unit.
  • System faults can occur.

    → Switch off ignition and remove ignition key or remote control (hand-held transmitter).

    → A power supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.

    → Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.

    → Wait 1 minute after disconnecting the battery.

    → Only pull off connector on the triggering unit after the waiting time has elapsed.

    → Make sure that no foreign objects are located in front of the airbag unit during installation.

    → Replace damaged parts during removal.

    → Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.

    → Do not place any objects on the airbag units.

    → If removed for an extended period, the airbag units must be stored in a safe place.

    → Airbag units must not come into contact with grease, oil, detergents, liquids or similar substances.

    → Do not expose airbag units to temperatures above 90°.

    → Do not remove the short-circuit spring on the plug contacts.

    → Triggering and preparations may only be carried out by skilled staff, supervised by a second responsible person.

    → Before disposal, the airbag unit must be rendered harmless by triggering it electrically while observing all precautionary measures, thereby preventing it from being used incorrectly.

Information

The number of plug connections can vary, depending on equipment.

  1. Remove seat rail cover.
    1. 1.1  Move front seat to its rear end position.

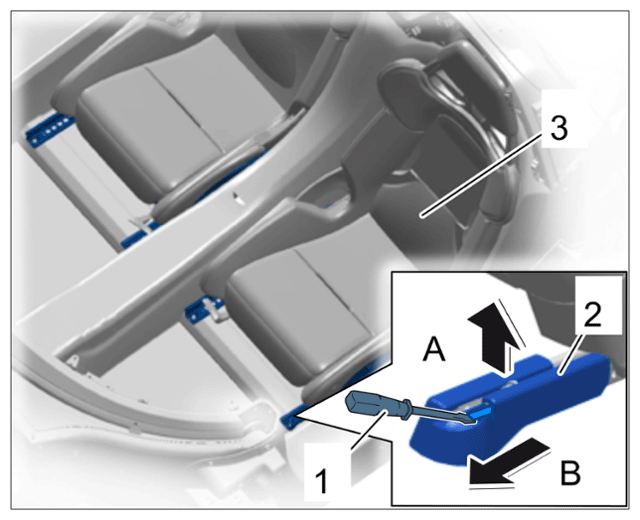

    2. 1.2 -2-  Using a suitable tool -1-  release -Arrow A-  seat rail cover and remove it -Arrow B-  .
    G16224509Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seat rail cover, shown on the 918

  2. Unscrew and remove front fastening screws -1-  on the seat rails -2-  .

    Replace screws during installation.

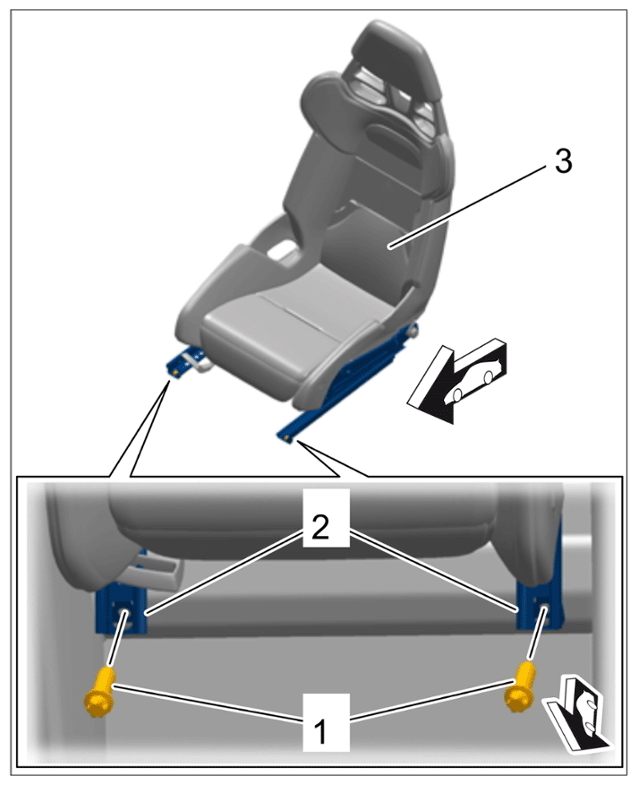

    G16224510Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seat mounting

  3. Loosen rear seat mounting.
    1. 3.1  Move front seat -3-  to its front end position.
    2. 3.2  Unscrew -1-  and remove screws on the seat rails -2-  .

    Replace screws during installation.

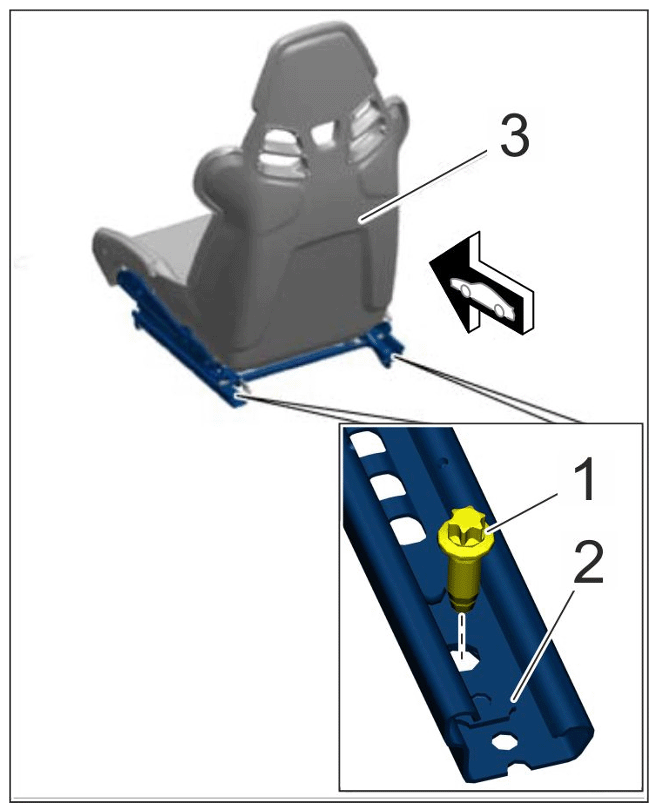

    G16224511Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seat mounting

  4. Remove plug connection on front seat.
    1. 4.1  Tilt front seat -5-  to the side.
    2. 4.2  Pull off bracket -3-  for the wire harness -1-  and unclip -4-  bracket.
    3. 4.3  Loosen and remove plug connection -2-  on the front seat -5-  by turning it clockwise -Arrow-  .

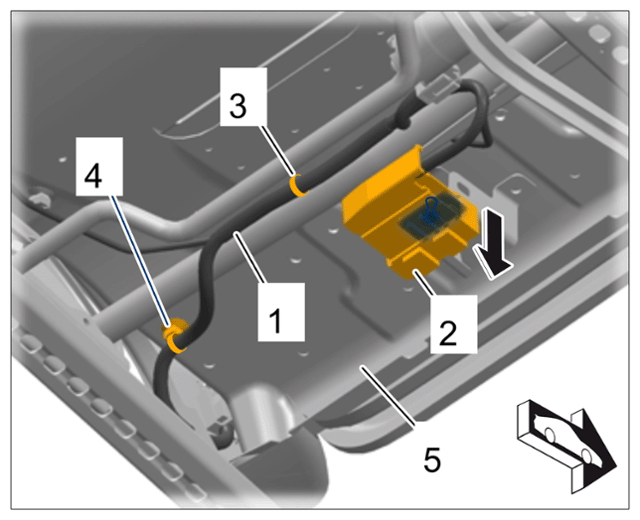

    G16224512Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting wire harness

  5. Disconnect plug connection.
    1. 5.1  Tilt front seat -3-  to the side.
    2. 5.2  Release and disconnect plug connection -1-  for wire harness -2-  .

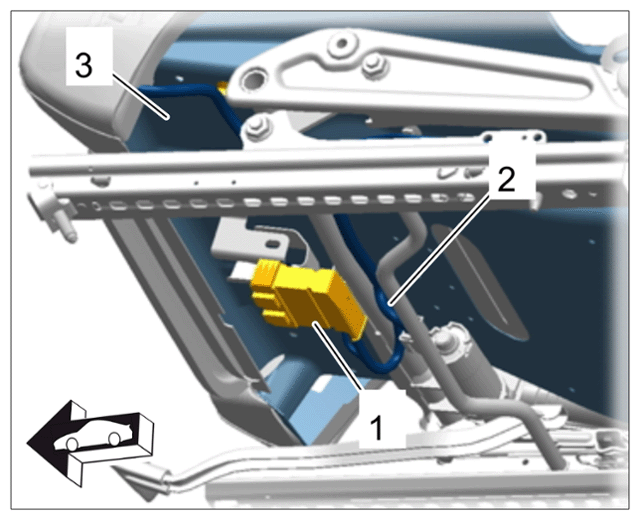

    G16224513Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting plug connection

  6. Get another person to help you to lift the front seat carefully out of the vehicle.
  7. Loosen seat belt mount.
    1. 7.1  Unclip cap -1-  using a plastic wedge and remove it.
    2. 7.2  Unscrew and remove screws -2-  .
    3. 7.3  Guide seat belt mount -3-  out through the seat shell -Arrow-  .

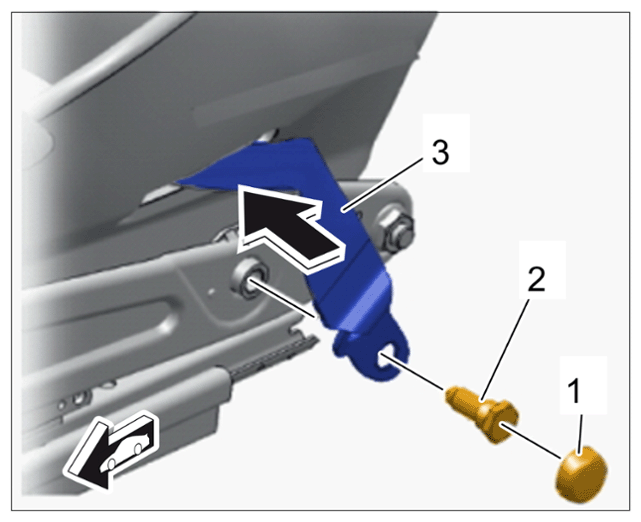

    G16224514Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seat belt mount
