Removing And Installing Luggage Compartment Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

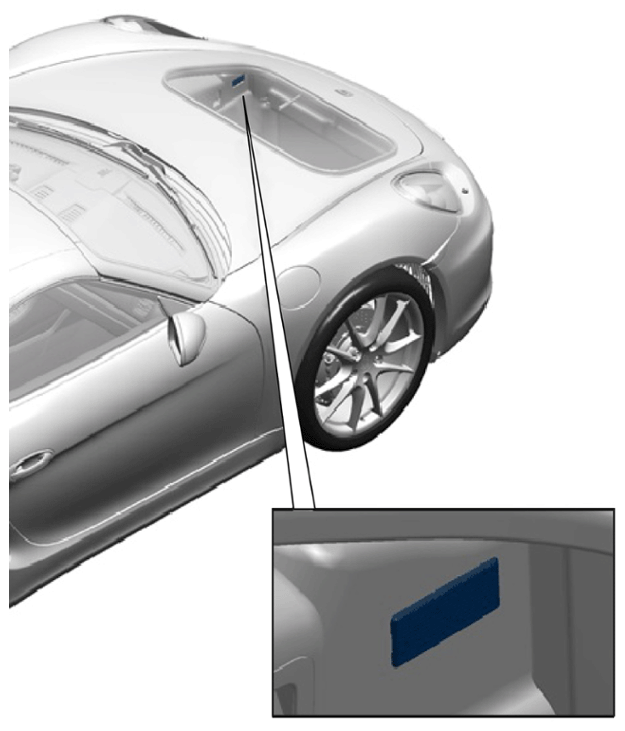

Installation position of luggage compartment lamp

1. Unclip luggage compartment lamp -arrow-  and pull it out of the trim panel.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

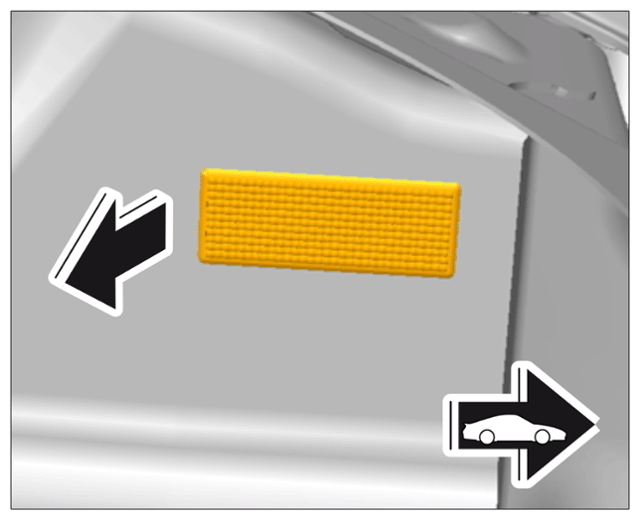

   Removing luggage compartment lamp (shown on the 991)

2. Disconnect electric plug connection and remove luggage compartment lamp.
3. Installation is performed in reverse order.
