Removing Front Camera
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
- The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
- The electrical pins or plug contacts must not be touched.
Information
Do not touch the front camera lens!
- Switch off ignition and pull remote control out of ignition lock.

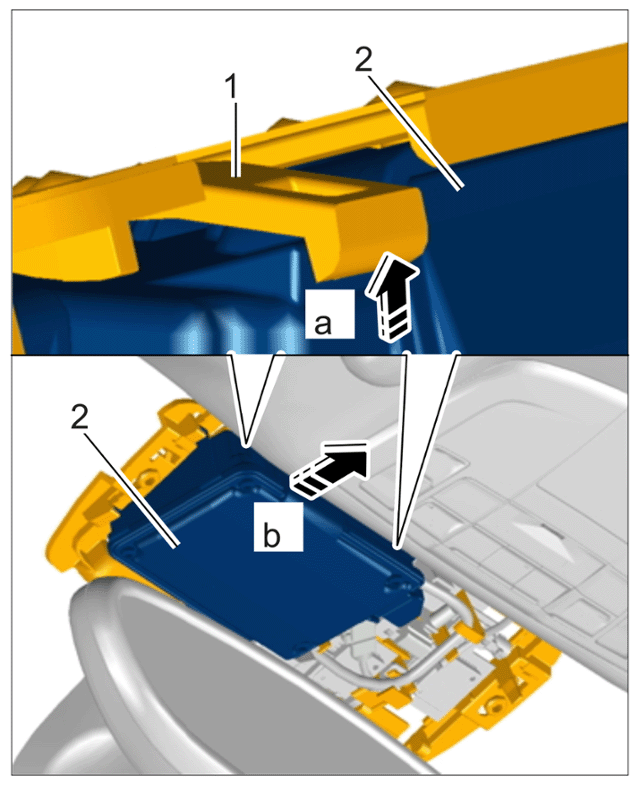

- Carefully disengage locks -1-
at the left and right using two plastic wedges -a-
and press front camera -2-
to the rear and out of the holder -b-
.
Removing front camera

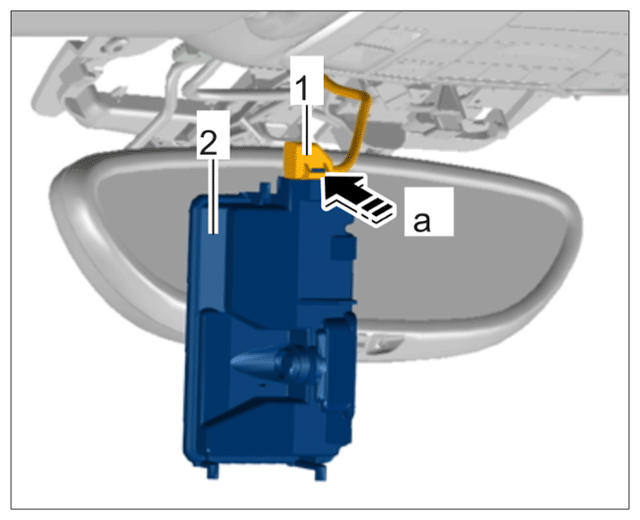

- Release electric plug connection -1-
and disconnect it from the front camera -2-
.
Disconnecting electric plug connection
