Installing Front Camera

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
• Never touch the electric pins and plug contacts.

Information

Do not touch the front camera lens!

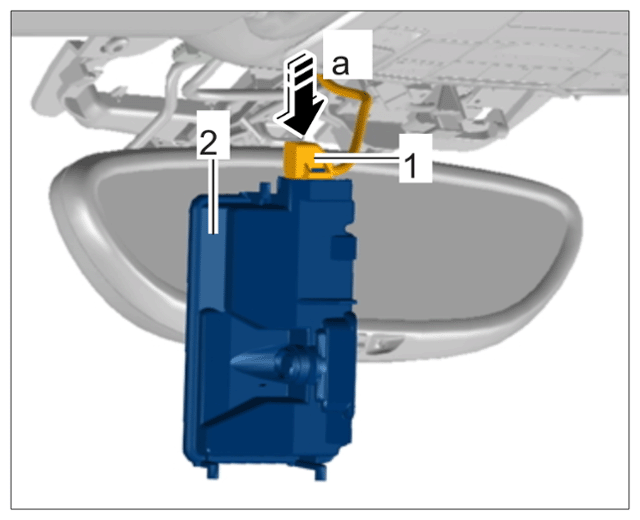

1. Connect electric plug connection -1-  to the front camera -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connecting electric plug connection

2. Install front camera.

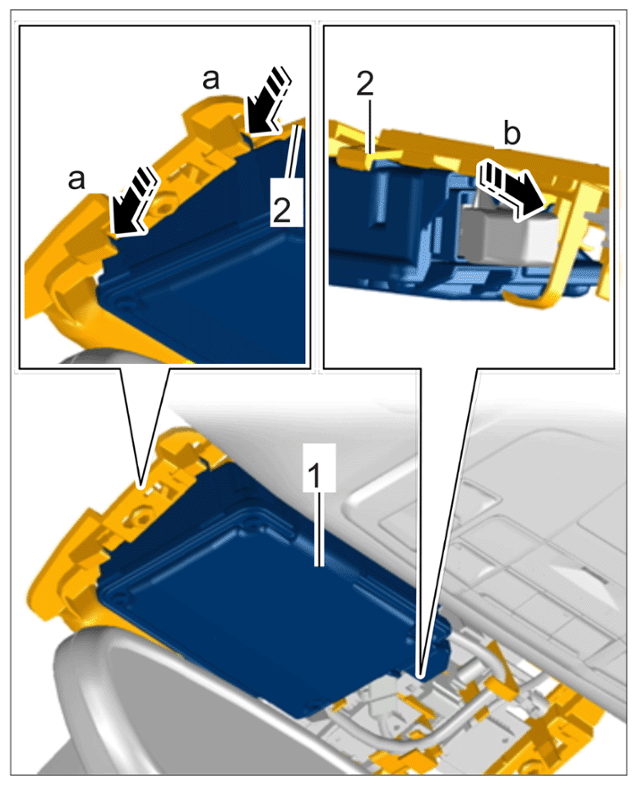

   1. 2.1  Position front camera -1-  on the holder in such a way that both retaining pins at the left -a-  and the retaining pin at the right -b-  make contact with the mounting points.
   2. 2.2  Press front camera forward into the mounting points until the locks -2-  engage securely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing front camera
